| Components |



| Removal |
|
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
|
| 3. |

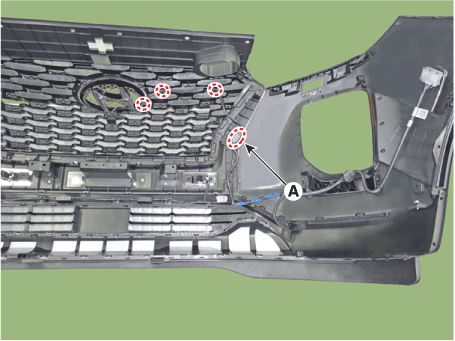

Disconnect the front camera connector (A), loosen the mounting screws
and remove the front camera.
|
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
|
| 3. |
Remove the tailgate back panel.
(Refer to Body - "Tailgate Back Panel")
|
| 4. |

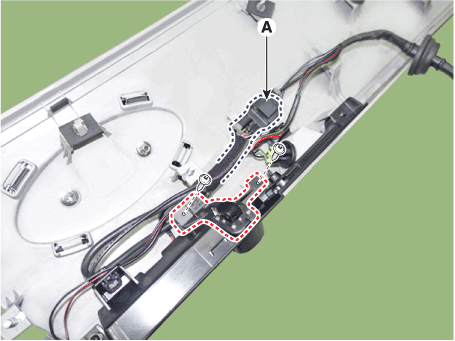

Disconnect the camera connector (A) and remove the rear view camera
after loosening mounting screws.
|
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the mirror.
(Refer to Body - "Outside Rear View Mirror")
|
| Installation |
| 1. |
To install, reverse the removal procedure.
|
