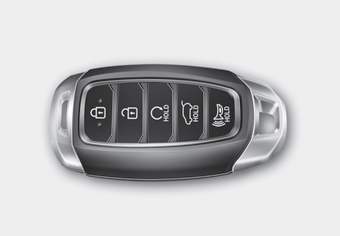

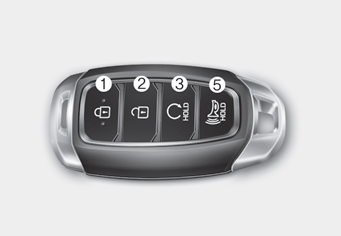

Hyundai Palisade: Accessing your vehicle / Smart Key

Battery replacement

If the remote key is not working properly, try replacing the battery with a new one. Battery Type: CR2032 To replace the battery: 1.Insert a slim tool into the slot and gently pry open the cover...

Locking your vehicle

To lock your vehicle using the door handle button or the Smart Key: 1.Make sure all doors, the hood and the liftgate are closed. 2.Make sure you have the smart key in your possession...

Other information:

Hyundai Palisade (LX2) 2020-2025 Service Manual: Schematic diagrams

..

Hyundai Palisade (LX2) 2020-2025 Service Manual: Troubleshooting

Trouble Symptom Charts Trouble Symptom 1 Trouble Symptom 2 Trouble symptom Probable cause Remedy The set vehicle speed varies greatly upward or downward "Surging" (repeated alternating acceleration and deceleration) occurs after setting Malfunction of the vehicle speed sensor circuit Repair the vehicle speed sensor system, or replace the part Malfunction of ECM Check input and output signals at ECM Trouble Symptom 3 Trouble symptom Probable cause Remedy The CC system is not canceled when the brake pedal is depressed Damaged or disconnected wiring of the brake pedal switch Repair the harness or replace the brake pedal switch Malfunction of the ECM signals Check input and output signals at ECM Trouble Symptom 4 Trouble symptom Probable cause Remedy The CC system is not canceled when the shift lever is moved to the "N" position (It is canceled, however, when the brake pedal is depressed) Damaged or disconnected wiring of inhibitor switch input circuit Repair the harness or repair or replace the inhibitor switch Improper adjustment of inhibitor switch Malfunction of the ECM signals Check input and output signals at ECM Trouble Symptom 5 Trouble symptom Probable cause Remedy Cannot decelerate (coast) by using the "SET/–" switch Temporary damaged or disconnected wiring of "SET/–" switch input circuit Repair the harness or replace the "SET/–" switch Malfunction of the ECM signals Check input and output signals at ECM Trouble Symptom 6 Trouble symptom Probable cause Remedy Cannot accelerate or resume speed by using the "RES/+" switch Damaged or disconnected wiring, or short circuit, or "RES/+" switch input circuit Repair the harness or replace the "RES/+" switch Malfunction of the ECM signals Check input and output signals at ECM Trouble Symptom 7 Trouble symptom Probable cause Remedy CC system can be set while driving at a vehicle speed of less than 40km/h (25mph), or there is no automatic cancellation at that speed Malfunction of the vehicle-speed sensor circuit Repair the vehicle speed sensor system, or replace the part Malfunction of the ECM signals Check input and output signals at ECM Trouble Symptom 8 Trouble symptom Probable cause Remedy The cruise main switch indicator lamp does not illuminate (But CC system is normal) Damaged or disconnected bulb of cruise main switch indicator lamp Repair the harness or replace the part...
