Hyundai Palisade. Remote Key

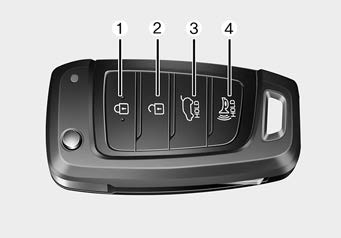

■ Type A

Hyundai Palisade. Remote Key

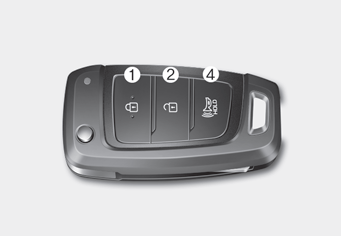

■ Type B

Your HYUNDAI uses a remote key, which you can use to lock or unlock the driver and passenger doors or the rear liftgate.

1. Door Lock
2. Door Unlock
3. Liftgate Unlock (if equipped)
4. Panic

Locking your vehicle

To lock your vehicle:

1. Make sure all doors, the engine, hood and the liftgate are closed.

2. Press the Door Lock button (1) on the remote key to lock all doors.

3. If the Door Lock button (1) is pressed once more within four seconds, the horn will beep once and the hazard warning lights will blink.

4. Make sure the doors are locked by checking the position of the door lock button inside the vehicle.

WARNING

Do not leave the keys in your vehicle with unsupervised children. Unattended children could place the key in the ignition switch and may operate power windows or other controls, or even make the vehicle move, which could result in serious injury or death.

Accessing your vehicle

Unlocking your vehicle

To unlock your vehicle : 1.Press the Door Unlock button (2) on the remote key. 2.The driver's door will unlock. The hazard warning lights will blink two times...
