Hyundai Palisade: If You Have a Flat Tire / Removing and Storing the Spare Tire

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / What to Do in an Emergency / If You Have a Flat Tire / Removing and Storing the Spare Tire

Hyundai Palisade. Spare Tire

Your spare tire is stored underneath your vehicle, directly below the cargo area.

To remove the spare tire:

1. Open the liftgate.

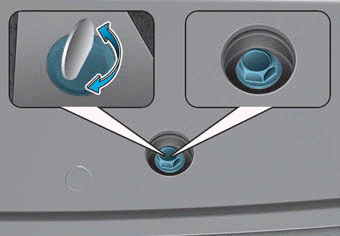

2. Find the plastic hex bolt cover and remove the cover with a coin or flat-blade screwdriver.

Hyundai Palisade. Spare Tire

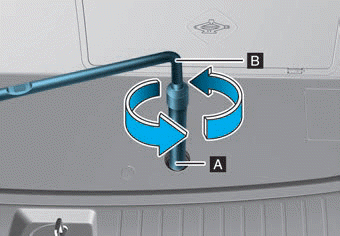

3. Connect the socket (A) and wheel lug nut wrench (B).

4. Loosen the bolt enough to lower the spare tire. Turn the wrench counterclockwise until the spare tire reaches the ground.

5. After the spare tire reaches the ground, continue to turn the wrench counterclockwise, and draw the spare tire outside. Never rotate the wrench excessively, otherwise the spare tire carrier may be damaged.

Hyundai Palisade. Spare Tire

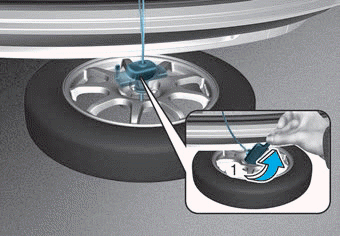

6. Draw out the retainer guide (1) through the center hole of the spare tire.

To store the spare tire:

1. Lay the tire on the ground with the valve stem facing up.

2. Place the wheel under the vehicle and install the retainer guide and chain through the wheel center.

3. Turn the wrench clockwise until it clicks.


Ensure the spare tire retainer guide is properly aligned with the center of the spare tire to prevent the spare tire from "rattling".

Otherwise, it may cause the spare tire to fall off the carrier and lead to an accident.

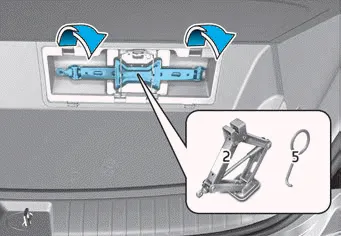

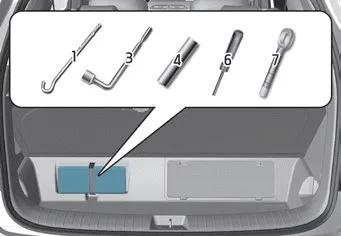

    Jack and Tools
