Hyundai Palisade. Reverse Parking Aid Function

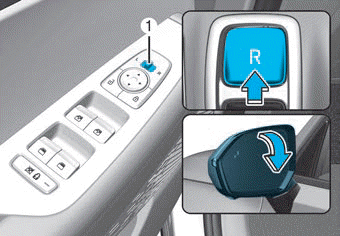

When you move the shift button to the R (Reverse) position, the side view mirror(s) will rotate downwards to aid with driving in reverse. The position of the side view mirror switch (1) determines whether or not the mirrors will move:

Left/Right : When either the L (Left) or R (Right) switch is selected, both side view mirrors will move.

Neutral : When neither switch is selected, the side view mirrors will not move.

The side view mirrors will automatically revert to their original positions if any of the following occur:

The ignition switch is placed to either the LOCK/OFF position or the ACC position.
The shift button is selected to any position except R (Reverse).
The remote control side view mirror switch is not selected.
