Hyundai Palisade: Cooling System / Reservoir Tank

Hyundai Palisade (LX2) 2020-2025 Service Manual / Engine Mechanical System / Cooling System / Reservoir Tank

Repair procedures

Removal and Installation

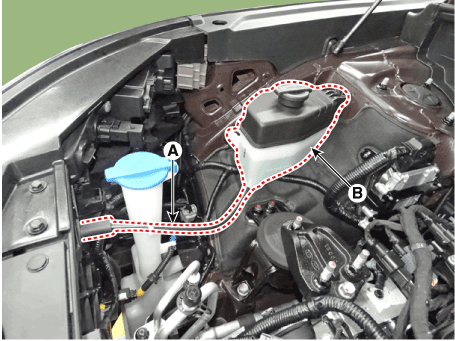

1.	Disconnect the over flow hose (A).

Remove the reservoir tank (B).

Tightening torque :

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Hyundai Palisade. Repair procedures

3.	Install in the reverse order of removal.
