Hyundai Palisade (LX2): Sunroof / Sunroof Deflector

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Deflector

Repair procedures

Replacement
1.
Completely open the moving glass using the wide sunroof switch.
2.

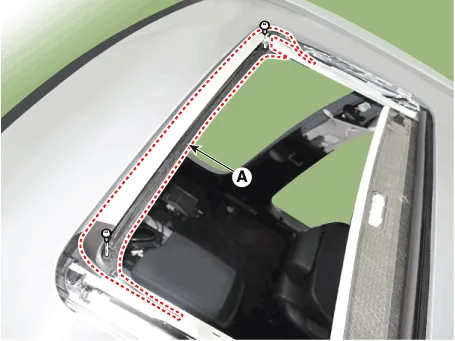

Remove the wide sunroof deflector (A) after loosening the mounting screws located on the front.
Hyundai Palisade. Repair procedures
•
Be careful not to damage the screws.

Hyundai Palisade. Repair procedures
3.
Install in the reverse order of removal.
