Hyundai Palisade (LX2): Sunroof / Sunroof Glass

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Glass

Components and components location

Components

Hyundai Palisade. Components and components location

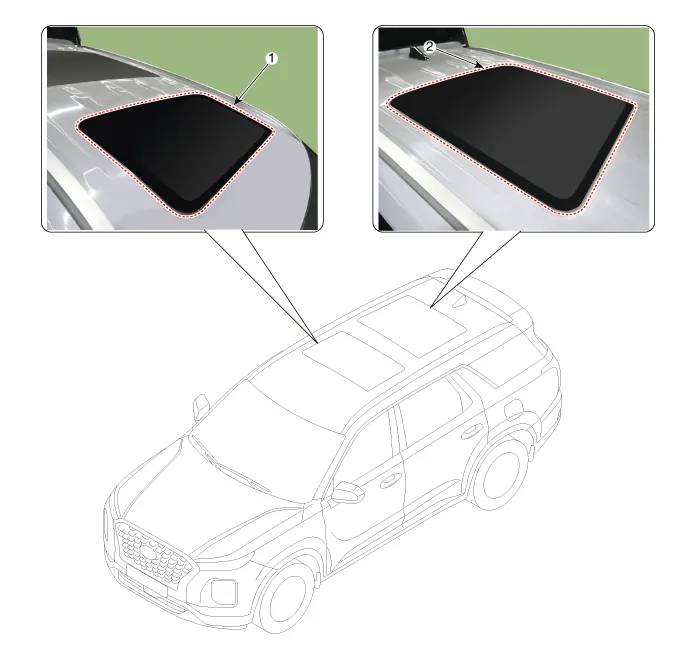

1. Sunroof glass
 2. Rear sunroof glass

Repair procedures

Replacement
[Front]
1.

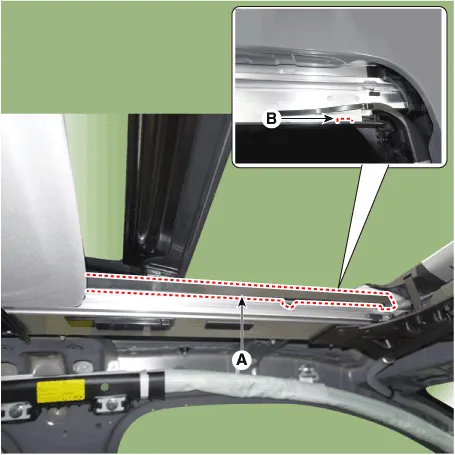

Slide the mechanism cover (A) in the direction of the arrow to align it with the groove (B) and remove it.

Hyundai Palisade. Repair procedures
2.

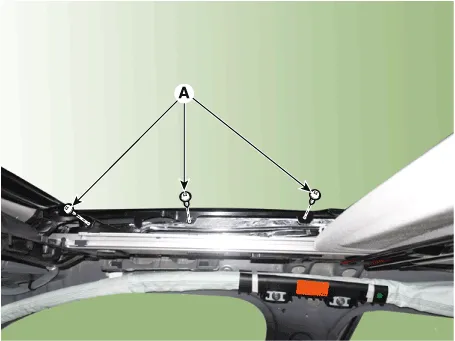

Adjust the height by loosening the screw (A) for adjusting the height of the glass.
Hyundai Palisade. Repair procedures
•
Unscrew the mounted screw while tilting the moving glass.

Hyundai Palisade. Repair procedures
3.
Carefully lift up the moving glass (A) and then remove it.

Hyundai Palisade. Repair procedures
4.
Install in the reverse order of removal.
Hyundai Palisade. Repair procedures
•
After replacing the movable glass, adjust the alignment if needed.
[Rear]
Hyundai Palisade. Repair procedures
•
Put on gloves to protect your hands.
•
Heat may occur when working on the wires. Be careful not to burn your hands.
•
Be careful not to disconnect the piano wire.
1.

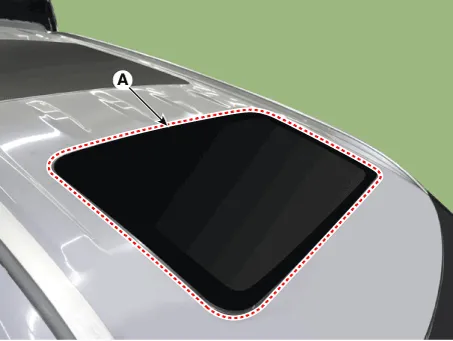

Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.

Hyundai Palisade. Repair procedures
2.

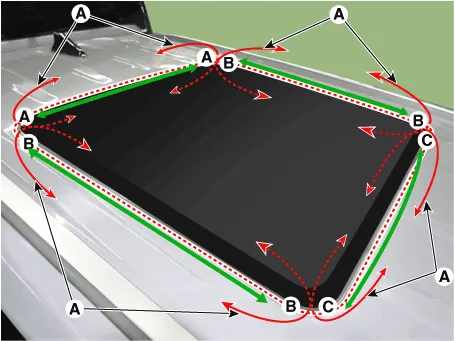

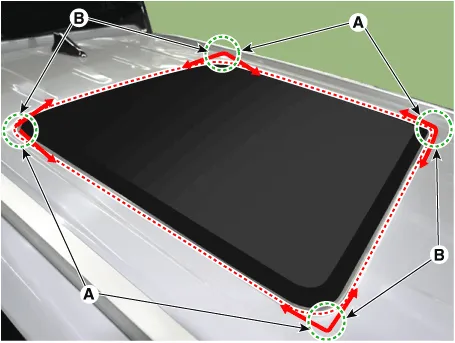

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right and remove the sunroof rear glass.

Hyundai Palisade. Repair procedures
3.
Install in the reverse order of removal.
Hyundai Palisade. Repair procedures
•
To make sure that the applied sealant is completely hardened, leave the car on a flat surface for at least 4 hours after installing the windshield glass.
•
If driving the car is inevitable, drive at a low speed for at least 8 hours.
•
Advise the driver to avoid aggressive driving or driving on rough roads for 2-3 days after installing the windshield glass.

    Adjustment Inspect Glass Alignment 1. Inspect the alignment of the front glass weatherstrip (B) and roof panel (A) and adjust it if needed.

    Repair procedures Replacement 1. Completely open the moving glass using the wide sunroof switch. 2. Remove the wide sunroof deflector (A) after loosening the mounting screws located on the front.
