Repair procedures

Replacement
[Front]
1.
Remove the roof trim assembly.
(Refer to Roof Trim - "Roof Trim Assembly")
2.
Remove the front sunroof glass.
(Refer to Sunroof - "Sunroof Glass")
3.

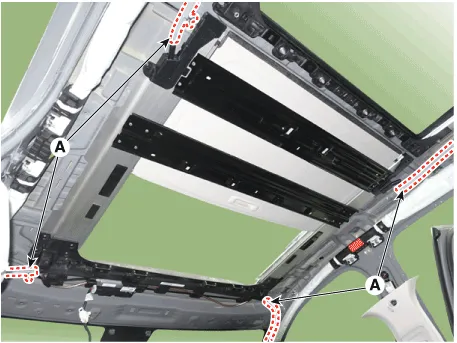

Press the lock pin and remove the drain hose (A).

Hyundai Palisade. Repair procedures
4.

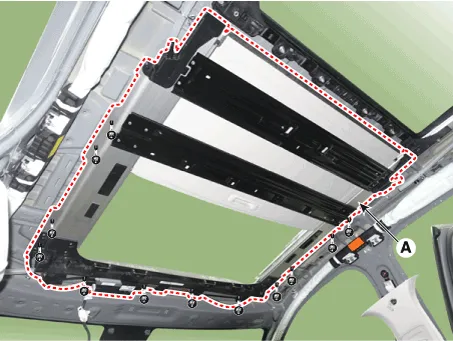

Loosen the mounting nuts and remove the front sunroof assembly (A).
Tightening torque :
7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

Hyundai Palisade. Repair procedures
5.
Install in the reverse order of removal.
Hyundai Palisade. Repair procedures
•
After replacing the movable glass, adjust the alignment if needed.
[Rear]
1.
Remove the roof trim assembly.
(Refer to Roof Trim - "Roof Trim Assembly")
2.

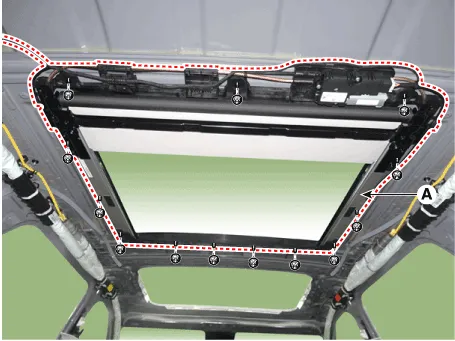

Loosen the mounting nuts and remove the rear sunroof assembly (A).
Tightening torque :
7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

Hyundai Palisade. Repair procedures
3.
Install in the reverse order of removal.
