Hyundai Palisade (LX2): Crash Pad / Cluster Fascia Panel

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Crash Pad / Cluster Fascia Panel

Components and components location

Component Location

Hyundai Palisade. Components and components location

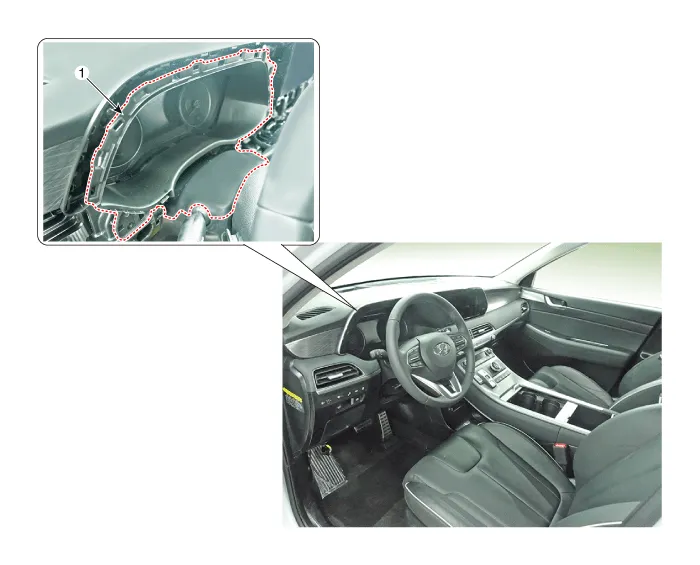

1. Cluster fascia panel

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the front center fascia panel. (Refer to Crash pad - "Center fascia panel")

2.	Remove the crash pad lower panel (Refer to Crash pad - "Crash pad lower panel")

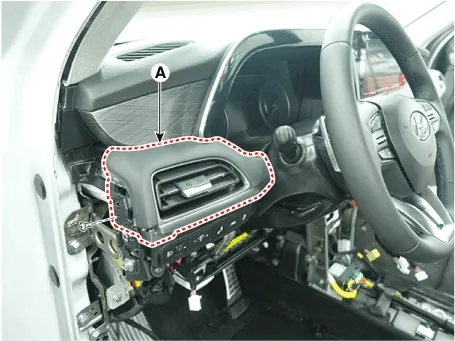

3.	Loosen the mounting screws and remove the side air vent duct [LH] (A).

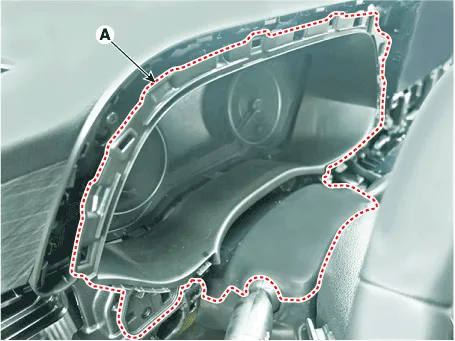

4.	Loosen the mounting screws and remove the cluster fascia panel (A).

To install, reverse the removal procedure.

•	Replace any damaged clips (or pin-type retainers).
