Hyundai Palisade (LX2): Crash Pad / Components and components location

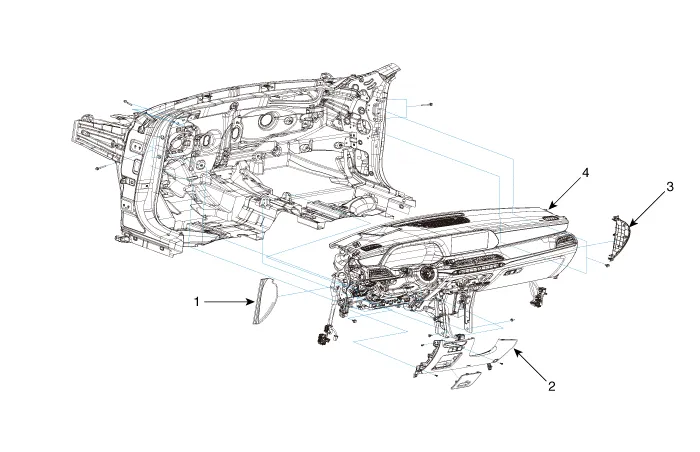

| Components (1) |
| 1. Crash pad side cover [LH] 2. Crash pad lower panel |
3. Crash pad side cover [RH] 4. Crash pad assembly |

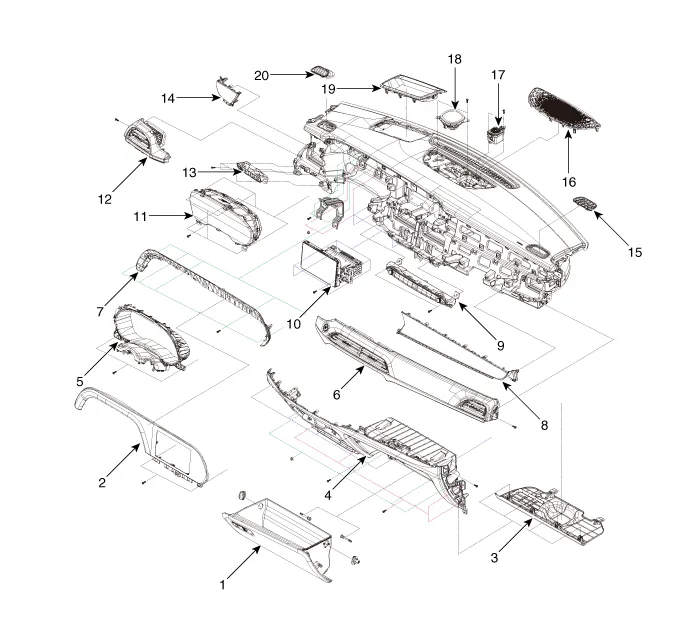

| Componets (2) |
| 1. Glove box 2. Front center fascia panel 3. Crash pad under cover 4. Crash pad center panel 5. Cluster fascia panel 6. Crash pad center garnish 7. Rear center fascia panel 8. Crash pad garnish [RH] 9. Audio keyborad assembly 10. AVN Head unit |
11. Cluster assembly 12. Side airvent duct assembly [LH] 13. Crash pad lower switch assembly 14. Crash pad garnish [LH] 15. Side defroster nozzle assembly [RH] 16. Center speaker grill assembly 17. Cluster speaker assembly 18. Front center speaker assembly 19. Head up display cover 20. Side defroster nozzle assembly [LH] |
Components and components location Component Location 1. Cluster fascia panel Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
