Hyundai Palisade (LX2): Wireless Power Charger System / Components and positions

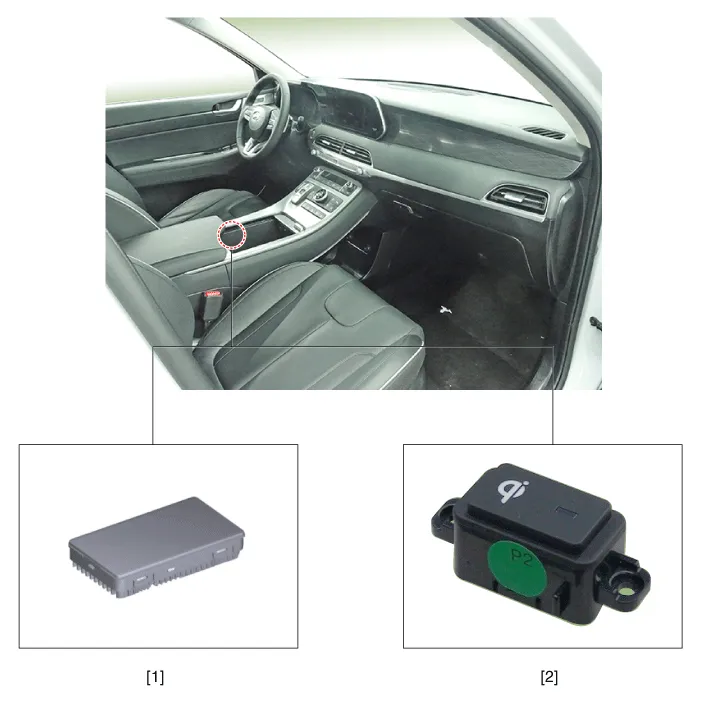

| Components |
| 1. Wireless power charging unit |
2. Wireless power charging lamp |
Specifications Item Specification Rated voltage DC 12V Operating voltage DC 8.
Description and Operation Wireless Power Charger System During ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone.
