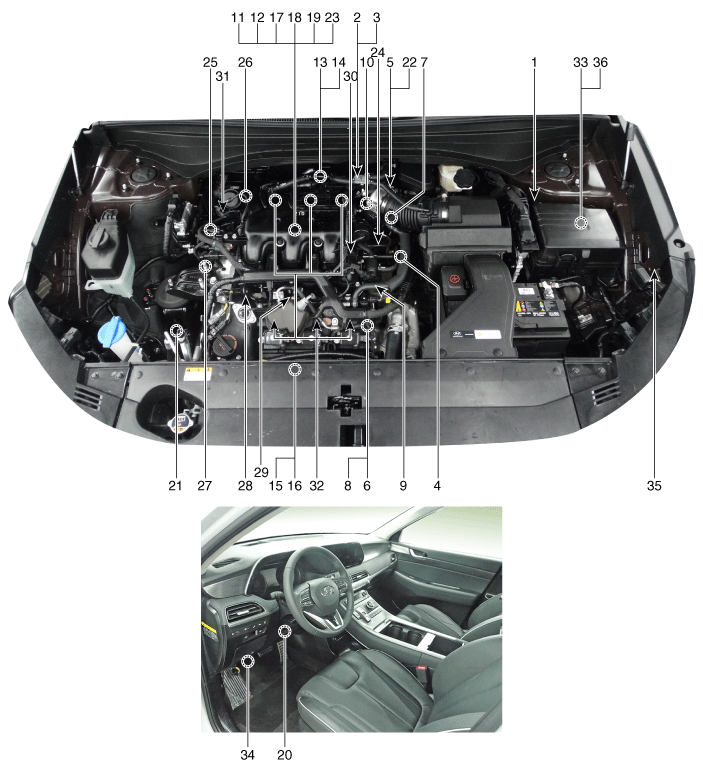

Components Location

Hyundai Palisade. Components and components location

1. ECM (Engine Control Module)
2. Intake Air Temperature Sensor (IATS)
3. Manifold Absolute Pressure Sensor (MAPS)
4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS) [integrated into ETC Module]
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
9. Camshaft Position Sensor (CMPS) [Bank 2 / Intake]
10. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust]
11. Knock Sensor (KS) [Bank 1]
12. Knock Sensor (KS) [Bank 2]
13. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
15. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 1]
16. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2]
17. Rail Pressure Sensor (RPS)
18. CVVT Oil Temperature Sensor (OTS)
19. CVVT Oil Pressure Sensor (OPS)
20. Accelerator Position Sensor (APS)
21. A/C Pressure Transducer (APT)
22. ETC Motor (integrated info ETC module]
23. Injector
24. Purge control solenoid valve (PCSV)
25. Variable Force Solenoid (VFS) [Bank 1 / Intake]
26. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
27. Variable Force Solenoid (VFS) [Bank 2 / Intake]
28. CVVT Oil Control Valve (OCV) [Bank 2 / Exhaust]
29. Fuel Pressure Control Valve (FPCV)
30. Variable Intake Solenoid (VIS) valve #1
31. Variable Intake Solenoid (VIS) valve #2
32. Ignition Coil
33. Fuel Pump Relay
34. Data Link Connector (DLC) [16 pin]
35. Multi-Purpose Check Connector [20 pin
36. Main Relay

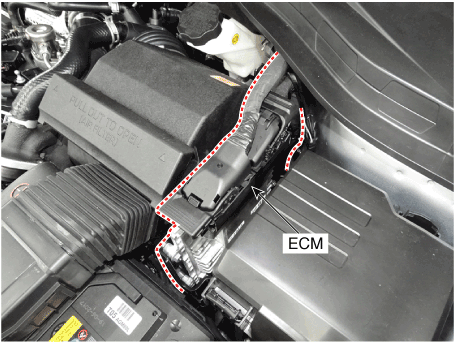

1. ECM (Engine Control Module)

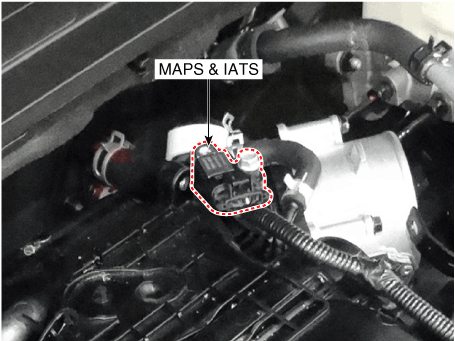

2. Intake Air Temperature Sensor (IATS)
3. Manifold Absolute Pressure Sensor (MAPS)

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

4. Engine Coolant Temperature Sensor (ECTS)

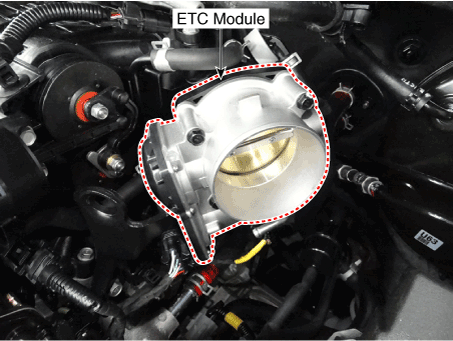

5. Throttle Position Sensor (TPS) [integrated into ETC Module]
22. ETC Motor (integrated info ETC Module)

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

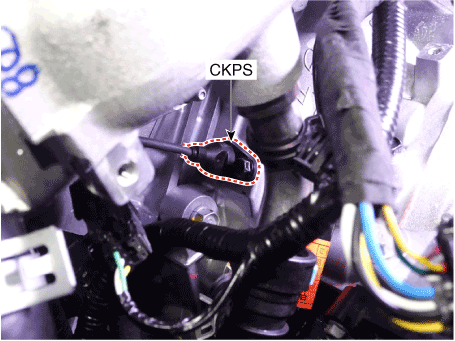

6. Crankshaft Position Sensor (CKPS)

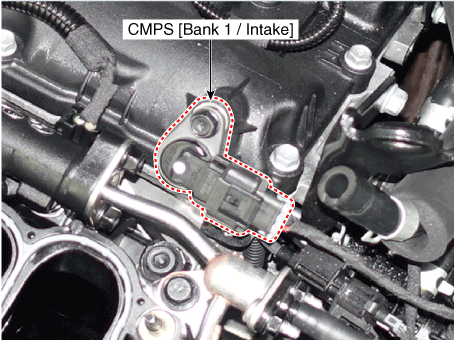

7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

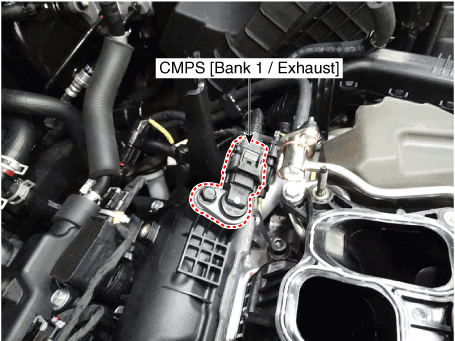

8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]

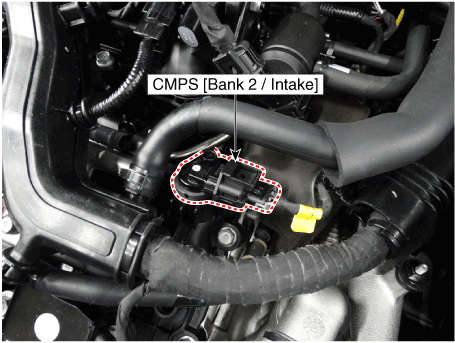

9. Camshaft Position Sensor (CMPS) [Bank 2 / Intake]

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

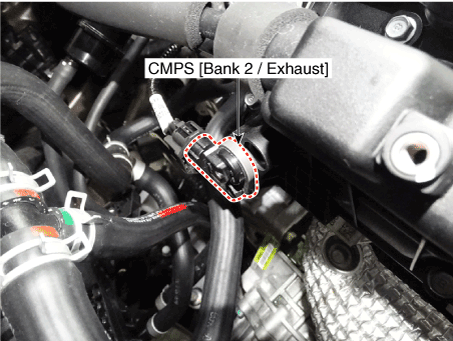

10. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust]

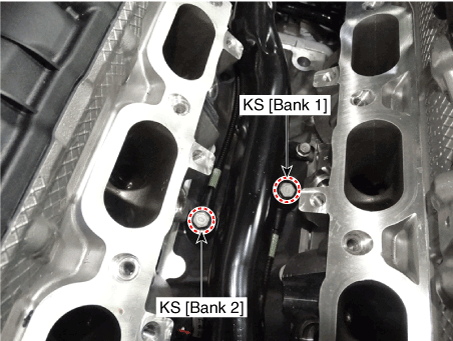

11. Knock Sensor (KS) [Bank 1]
12. Knock Sensor (KS) [Bank 2]

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

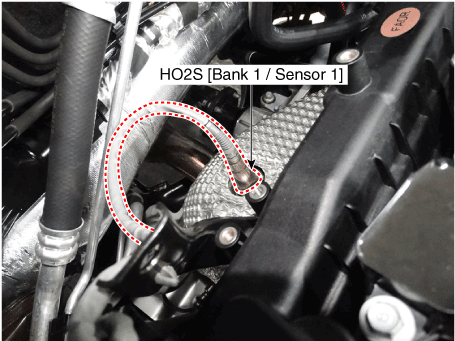

13. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]

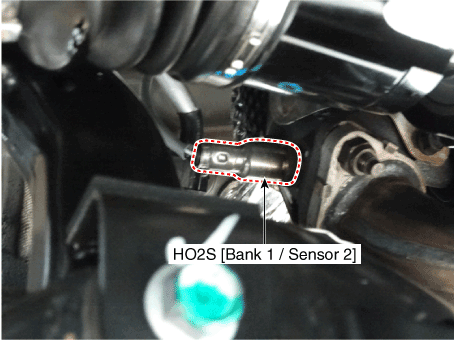

14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

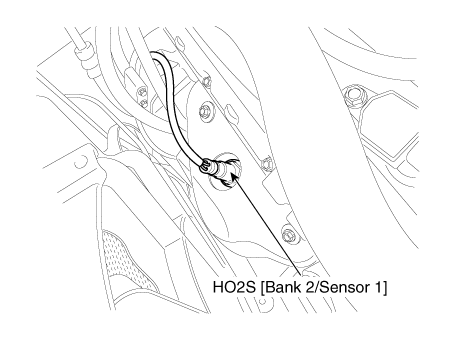

15. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 1]

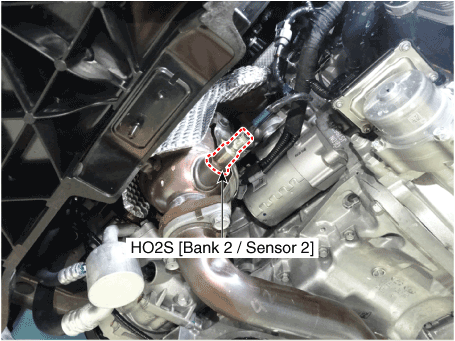

16. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2]

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

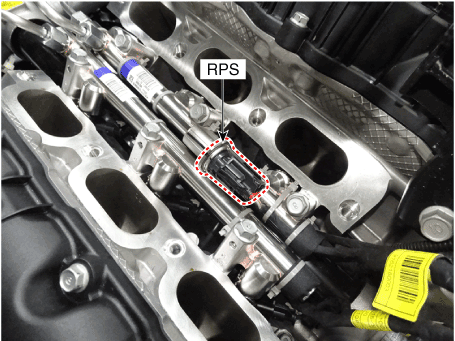

17. Rail Pressure Sensor (RPS)

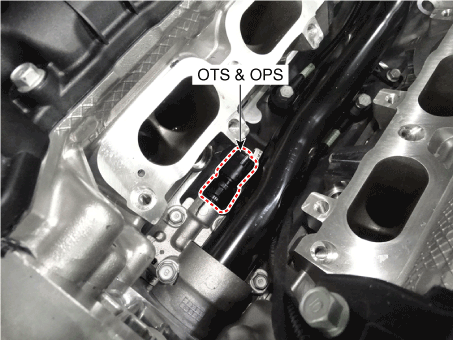

18. CVVT Oil Temperature Sensor (OTS)
19. CVVT Oil Pressure Sensor (OPS)

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

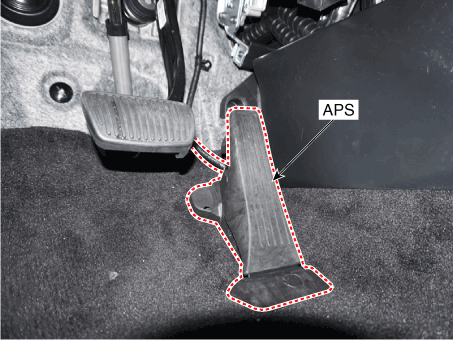

20. Accelerator Position Sensor (APS)

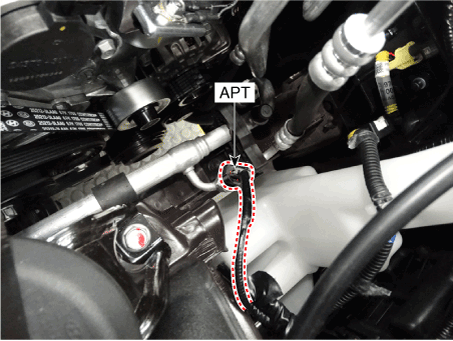

21. A/C Pressure Transducer (APT)

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

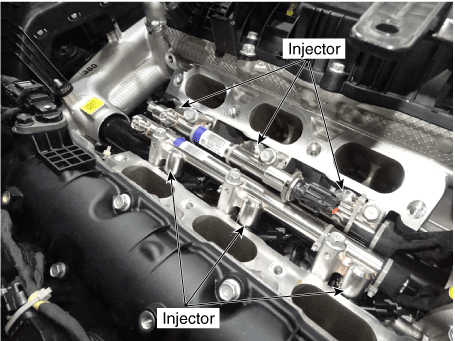

23. Injector

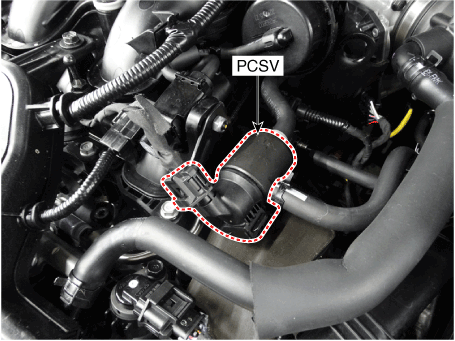

24. Purge control solenoid valve (PCSV)

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

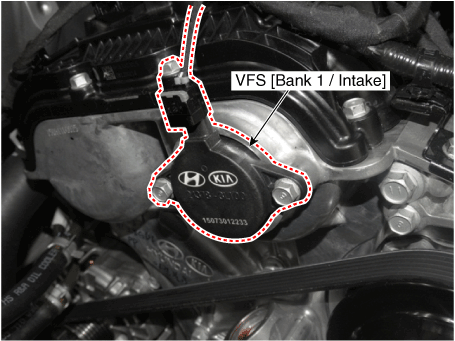

25. Variable Force Solenoid (VFS) [Bank 1 / Intake]

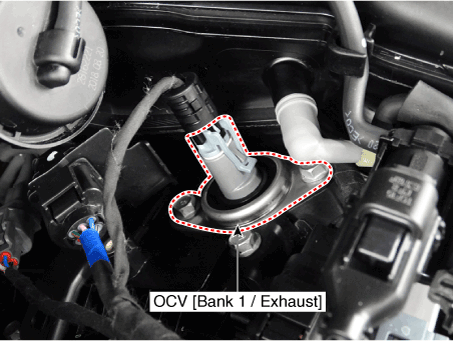

26. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

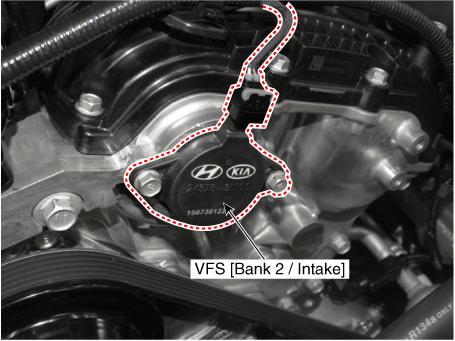

27. Variable Force Solenoid (VFS) [Bank 2 / Intake]

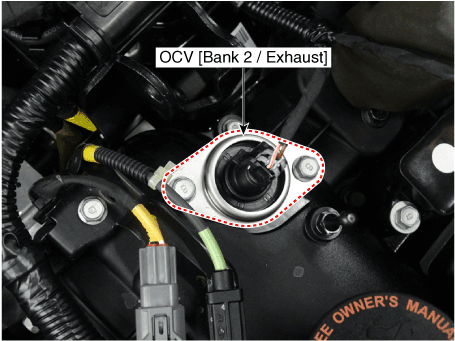

28. CVVT Oil Control Valve (OCV) [Bank 2 / Exhaust]

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

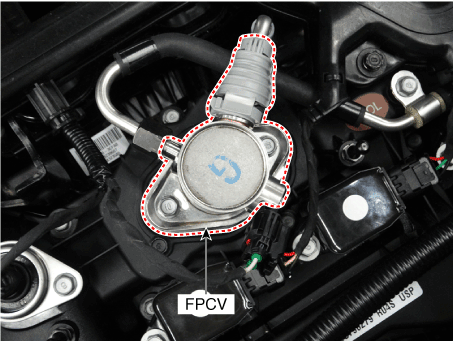

29. Fuel Pressure Control Valve (FPCV)

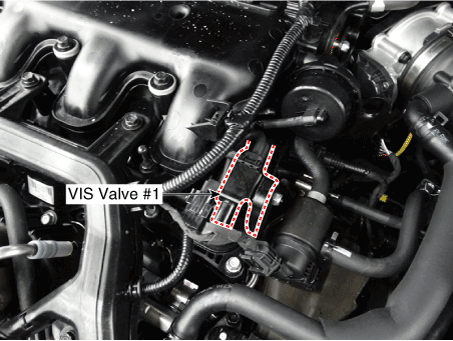

30. Variable Intake Solenoid (VIS) valve #1

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

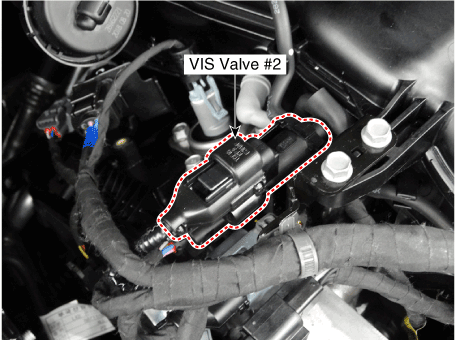

31. Variable Intake Solenoid (VIS) valve #2

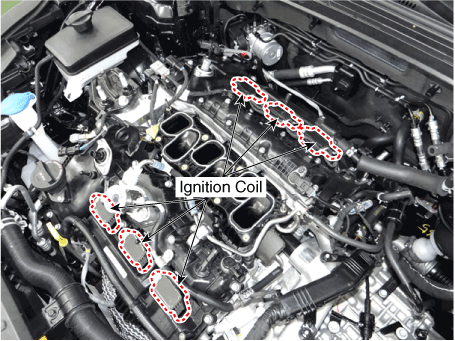

32. Ignition Coil

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

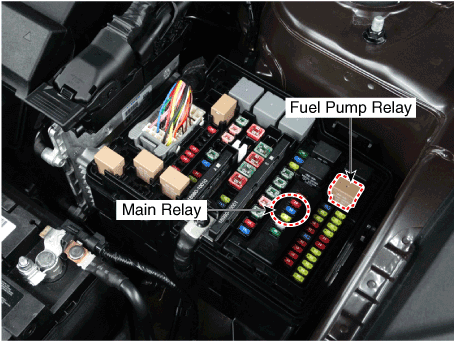

36. Main Relay [EMS Box]
33. Fuel Pump Relay [EMS Box]

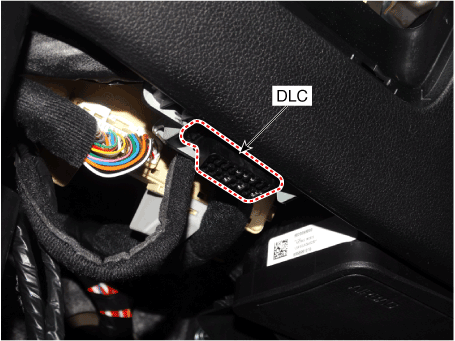

34. Data Link Connector (DLC) [16 pin]

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

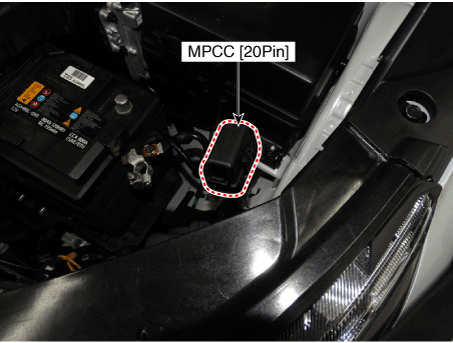

35. Multi-Purpose Check Connector [20 pin]

Hyundai Palisade. Components and components location
