Hyundai Palisade: Rear Suspension System / Rear Upper Arm

Hyundai Palisade (LX2) 2020-2023 Service Manual / Suspension System / Rear Suspension System / Rear Upper Arm

Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.

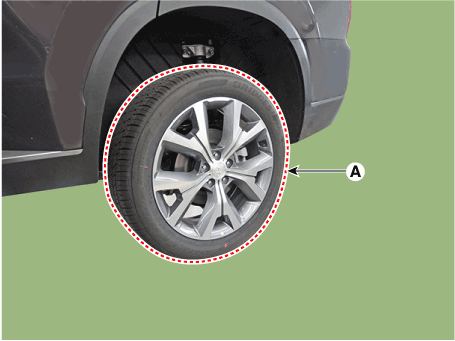

Remove the rear wheel and tire (A) from rear hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
Hyundai Palisade. Repair procedures
Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

Hyundai Palisade. Repair procedures

3.

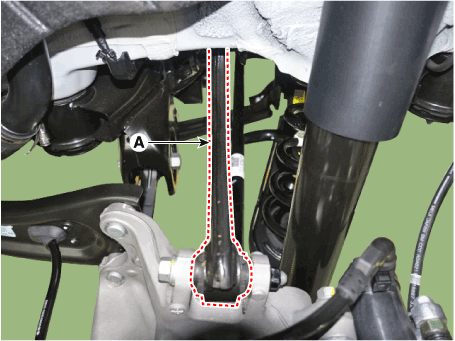

Loosen the bolt & nut then remove the rear upper arm (A) from the rear axle.
Tightening torque:
98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)
Hyundai Palisade. Repair procedures
Set up the transmission jack under the lower arm in order to remove it in no-load condition.

Hyundai Palisade. Repair procedures

Inspection
1.
Check the bushing for wear and deterioration.
2.
Check the rear upper arm or damage and deformation.
3.
Check for all bolts and nut.
Installation
1.
Install in the reverse order of removal.
2.
Check the alignment.
(Refer to Suspension System - "Alingment")

    Rear Shock Absorber

    Components and components location Components 1. Rear shock absorber 2. Dust cover 3. Bumper rubber 4. Insulator assembly 5...

    Rear Lower Arm

    Repair procedures Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported...
