Hyundai Palisade (LX2): Rear Heater / Rear Blower Motor

Hyundai Palisade (LX2) 2020-2026 Service Manual / Heating,Ventilation And Air Conditioning / Rear Heater / Rear Blower Motor

Repair procedures

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the luggage side trim
(Refer to Body - "Luggage Side Trim ")
3.

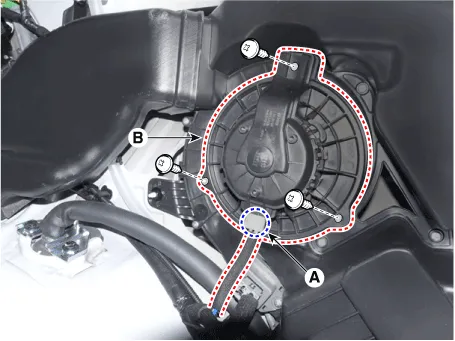

Separate the rear blower motor connector (A), loosen the mounting screws and remove the rear blower motor (B).

Hyundai Palisade. Repair procedures
4.
Install in the reverse order of removal.
Hyundai Palisade. Repair procedures
•
Make sure the connector is connected in properly.

    Repair procedures Replacement 1. Remove the rear heater & A/C unit. (Refer to Rear Heater - "Rear Heater Unit") 2.

    Repair procedures Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the luggage side trim (Refer to Body - "Luggage Side Trim ") 3.
