| Inspection |
| 1. |
Remove the front door trim.
(Refer to Body - "Front Door Trim")
|
| 2. |
Remove the front door module.
(Refer to Body - "Front Door Module")
|
| 3. |

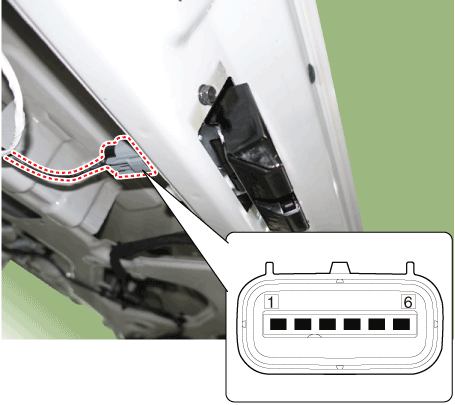

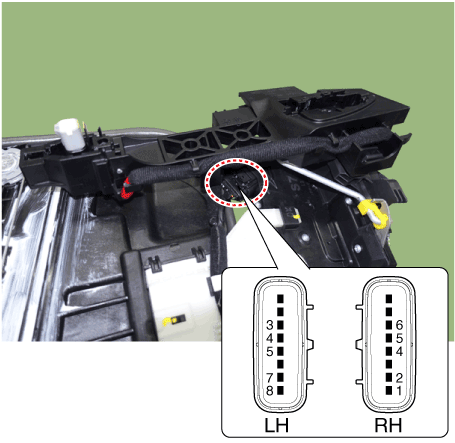

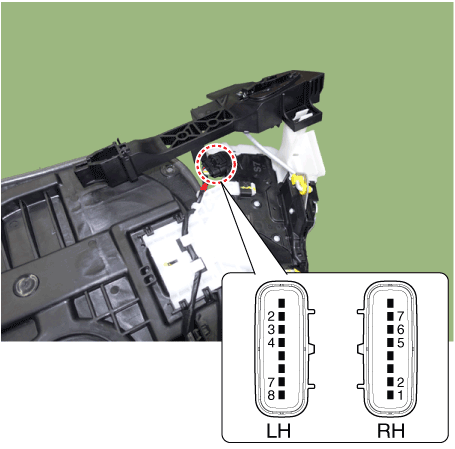

Disconnect the connectors from the actuator.
|
| 4. |

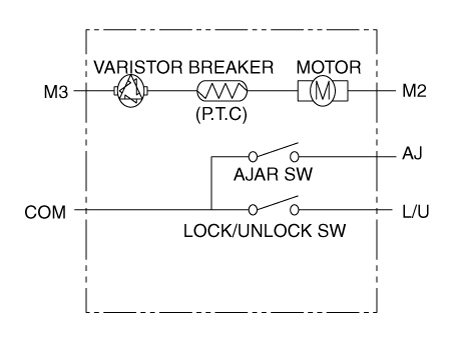

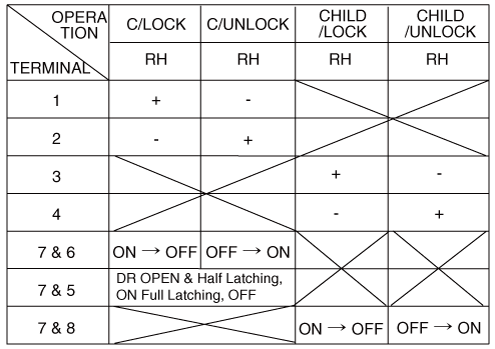

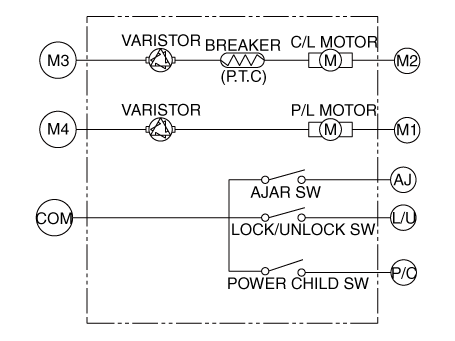

Check actuator operation by connecting power and ground according to
the table. To prevent damage to the actuator, apply battery voltage
only momentarily.
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| 1. |
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
|
| 2. |
Remove the rear door module.
(Refer to Body - "Rear Door Module")
|
| 3. |
Disconnect the connectors from the actuator.
|
| 4. |

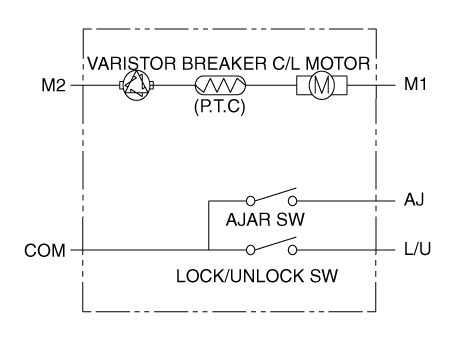

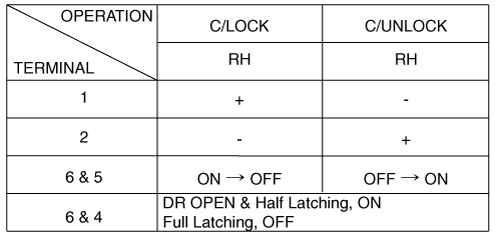

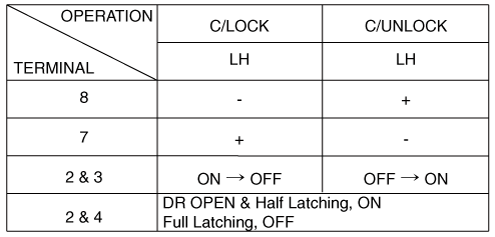

Check actuator operation by connecting power and ground according to
the table. To prevent damage to the actuator, apply battery voltage
only momentarily.
[Central Lock]
[Power Child Lock]
[Central Lock]
[Power Child Lock]
|
|||||||||||||||||||||||||||||
| 1. |
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
|
| 2. |

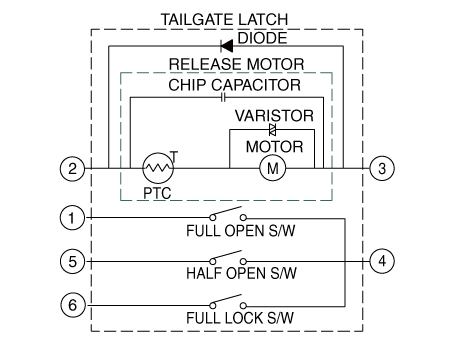

Disconnect the 4P connector from the actuator.
|
| 3. |

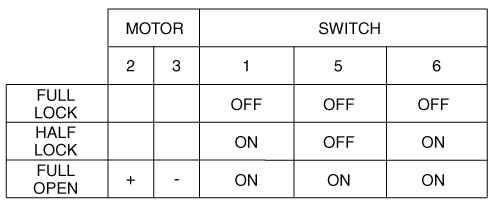

Check for continuity between the terminals in each switch position according
to the table.
|
