Component Location

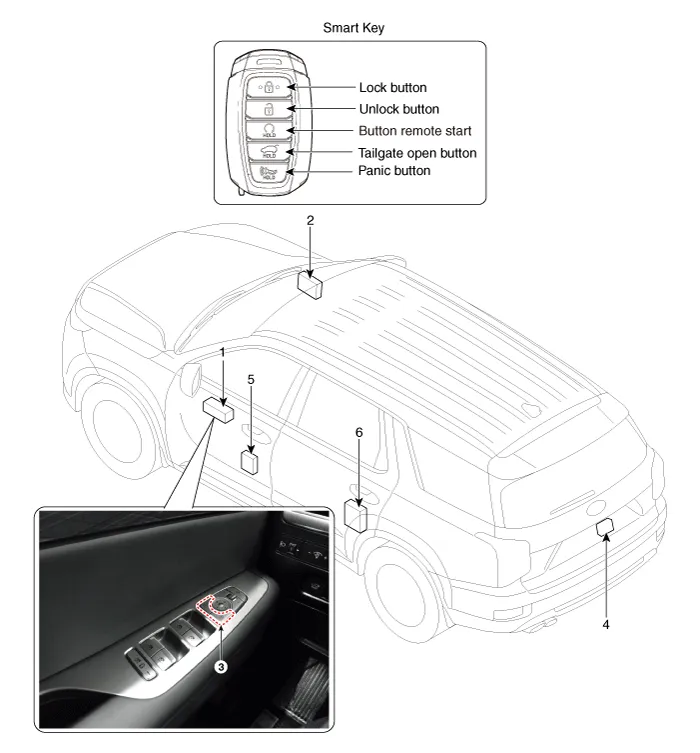

Hyundai Palisade. Components and components location

1. Driver power window main switch
2. IBU (Integrated Body Control Unit)
3. Door lock switch
 4. Tailgate lock actuator & switch
5. Front door lock actuator & switch
6. Rear door lock actuator & switch

    Repair procedures Inspection Front Door Lock Module Inspection 1. Remove the front door trim. (Refer to Body - "Front Door Trim") 2.
