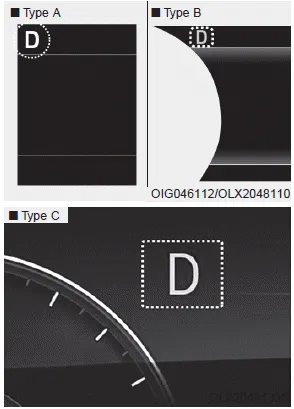

Automatic transmission shift indicator

This indicator displays the gear position of the shift button.

â– Type A

â– Type B

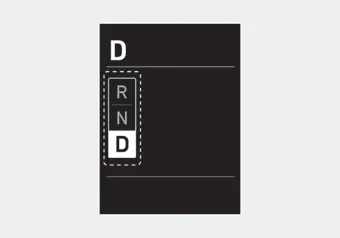

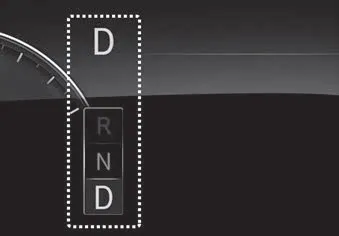

Shift indicator pop-up (if equipped)
The pop-up indicates the current gear position displayed in the cluster for about 2 seconds when shifting into other positions (P/R/N/D).
The shift indicator pop-up function can be activated or deactivated from the User Settings mode in the cluster LCD display.
Odometer The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.
Information Make sure that all warning lights are OFF after starting the engine. If any light is still ON, this indicates a situation that needs attention.
