Hyundai Palisade (LX2): Gauges and Meters / Odometer & Range

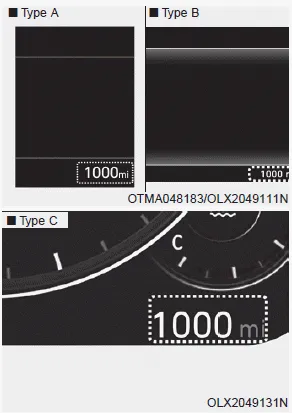

Odometer
The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

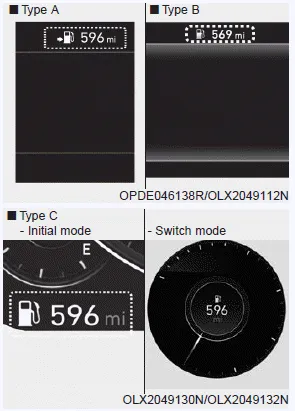

Range
- The range is the estimated distance the vehicle can be driven with the remaining fuel.
- If the estimated distance is below 1 mi. (1 km), the trip computer will display "----" as range.
Information
- If the vehicle is not on level ground or the battery power has been interrupted, the range function may not operate correctly.
- The range may differ from the actual driving distance as it is only an estimate of the available driving range for the vehicle and driving conditions.
- The trip computer may not register additional fuel if less than 1.6 gallon (6 liters) of fuel are added to the vehicle.
- The range may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
This gauge indicates the current outside air temperature by 1 degrees F (1 degrees C). - Temperature range : -40°F ~ 140°F (-40°C ~ 60°C) Note that the temperature indicated on the LCD display may not change as quickly as the outside temperature (there may be a slight delay before the temperature changes.
Automatic transmission shift indicator This indicator displays the gear position of the shift button. â– Type A â– Type B Shift indicator pop-up (if equipped) The pop-up indicates the current gear position displayed in the cluster for about 2 seconds when shifting into other positions (P/R/N/D).
