Hyundai Palisade (LX2): Roof Trim / Sunvisor

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Roof Trim / Sunvisor

Components and components location

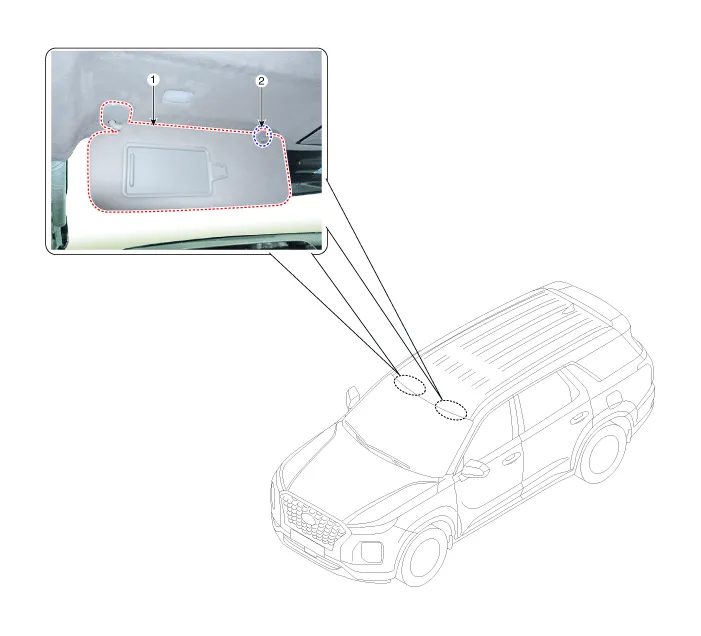

Component Location

Hyundai Palisade. Components and components location

1. Sunvisor
 2. Retainer

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to bend or scratch the trim and panels.
1.

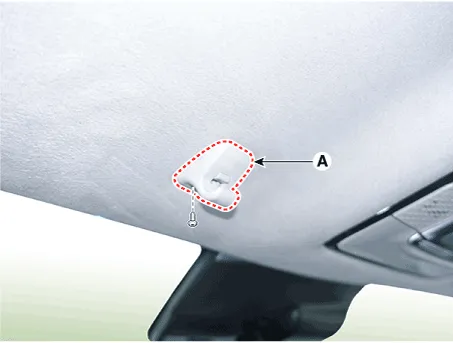

Remove the sunvisor pivot cover (A).

Hyundai Palisade. Repair procedures
2.

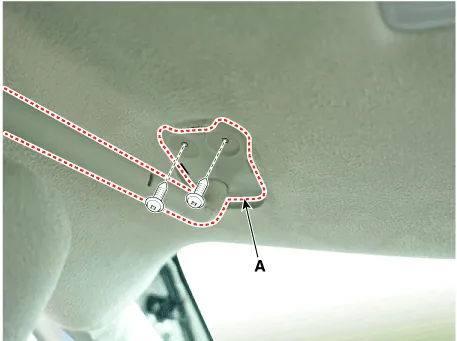

Loosen the mounting screw and seperate the sunvisor (A).

Hyundai Palisade. Repair procedures
3.
Loosen the mounting screws and remove the retainer (A).

Hyundai Palisade. Repair procedures
4.
To install, reverse removal procedure.
