Hyundai Palisade (LX2): Roof Trim / Components and components location
| Components |

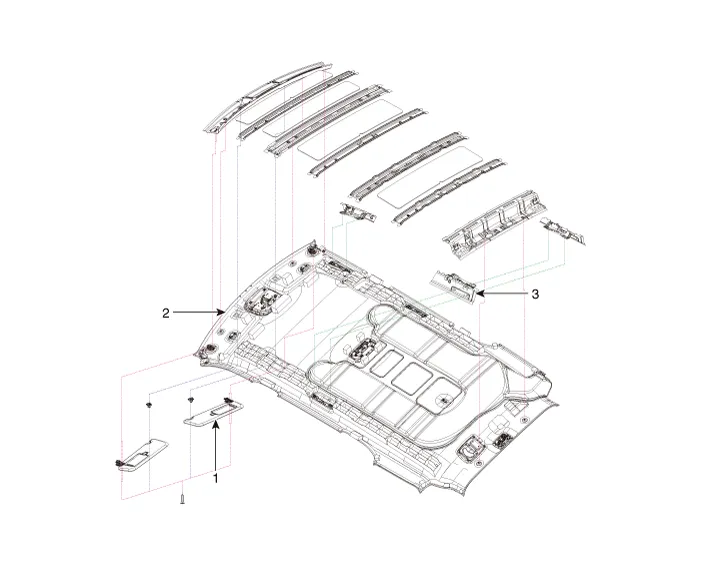

| [General Type] |
| 1. Sunvisor 2. Roof trim |
3. Assist handle braket |
| [Sunroof Type] |
| 1. Sunvisor 2. Roof trim |
3. Assist handle braket |
Components and components location Component Location 1. Sunvisor 2. Retainer Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
