Hyundai Palisade (LX2): Rear Door / Rear Door Module

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Module

Components and components location

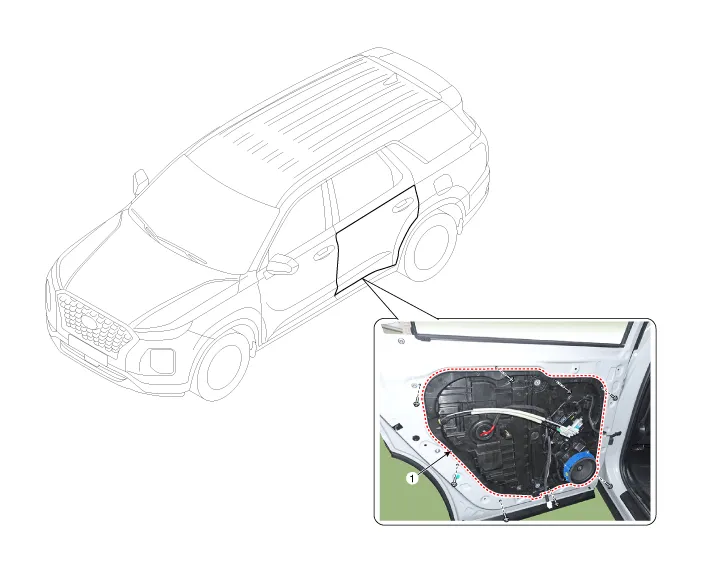

Component Location

Hyundai Palisade. Components and components location

1. Rear door module

Repair procedures

Replacement

1.	Remove the rear door window glass. (Refer to Rear Door - "Rear Door Window Glass")

2.	Remove the rear door outside handle. (Refer to Rear Door - "Rear Door Outside Handle")

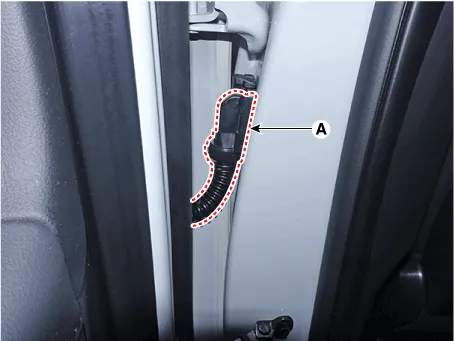

3.	Press the lock pin and separate the rear door main connector (A).

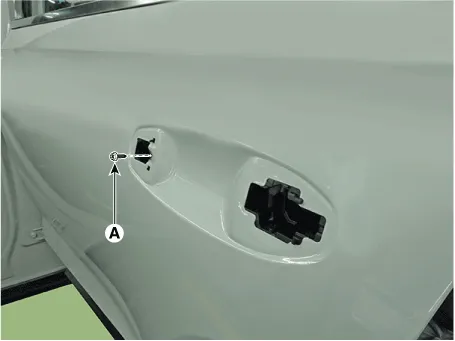

4.	Loosen the rear door out side handle base mounting screw (A).

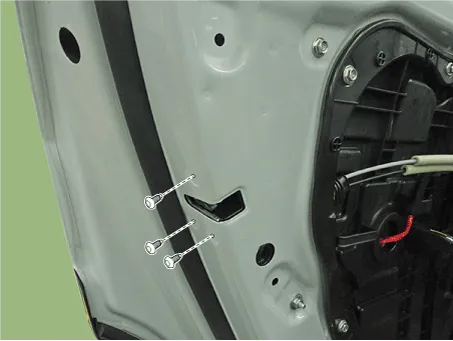

Loosen the rear door latch mounting screw.

Tightening torque :

7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

Hyundai Palisade. Repair procedures

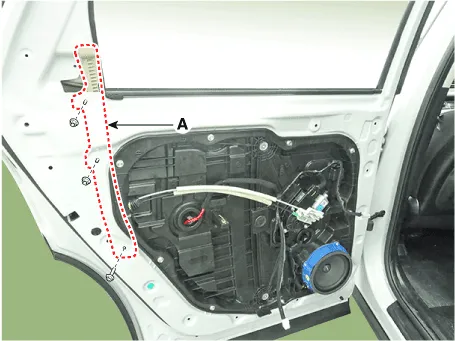

6.	Remove the rear door channel (A).

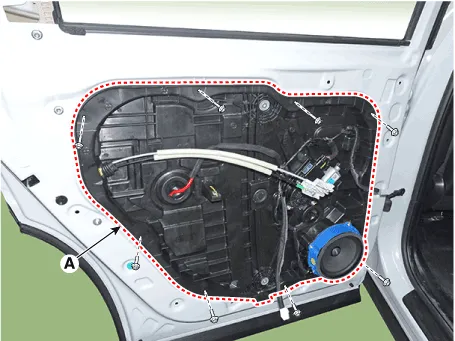

Loosen mounting bolts and remove the rear door module (A).

Tightening torque :

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Hyundai Palisade. Repair procedures

8.	Remove the rear door main wiring (A).

To install, reverse removal procedure.

•	Make sure connectors are connected properly and each rod is connected securely.

•	Make sure the door locks / unlocks and opens / closes properly.
