Hyundai Palisade (LX2): Rear Door / Rear Door Outside Handle

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Outside Handle

Components and components location

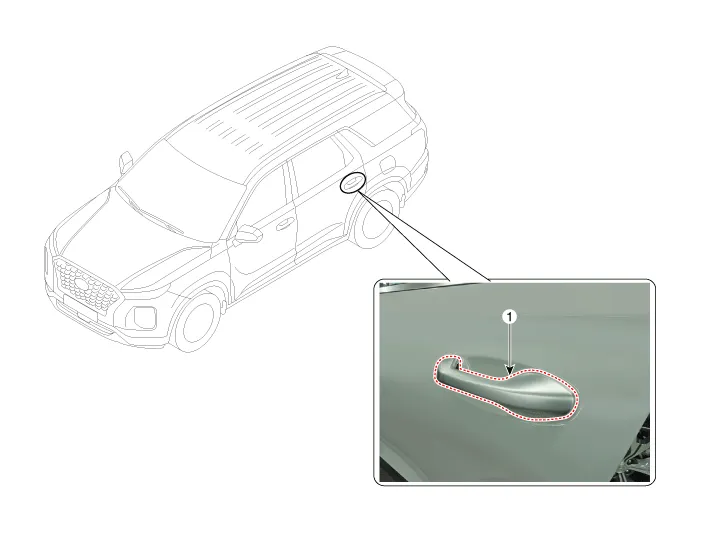

Component Location

Hyundai Palisade. Components and components location

1. Rear door outside handle

Repair procedures

Replacement
1.

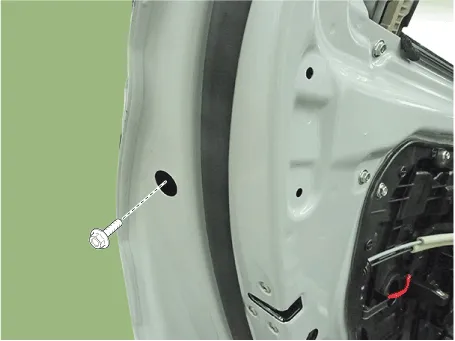

Remove the plug hole and loosen the mounting bolt.

Hyundai Palisade. Repair procedures
2.

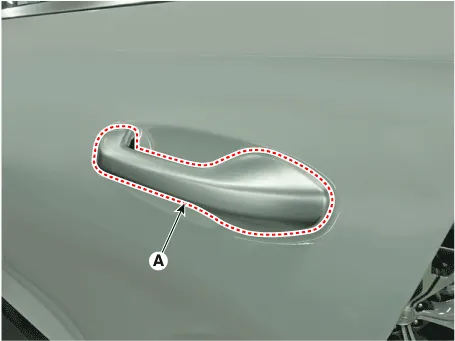

Remove the rear door outside handle (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure the door locks / unlocks and opens / closes properly.
•

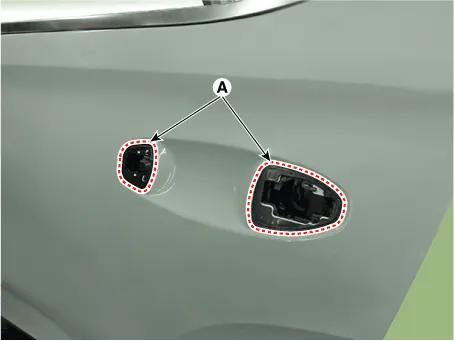

Be sure to install the outside handle pad (A) between the outside handle and the door panel.

Hyundai Palisade. Repair procedures
