Hyundai Palisade (LX2): Rear Door / Rear Door Window Glass

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Window Glass

Components and components location

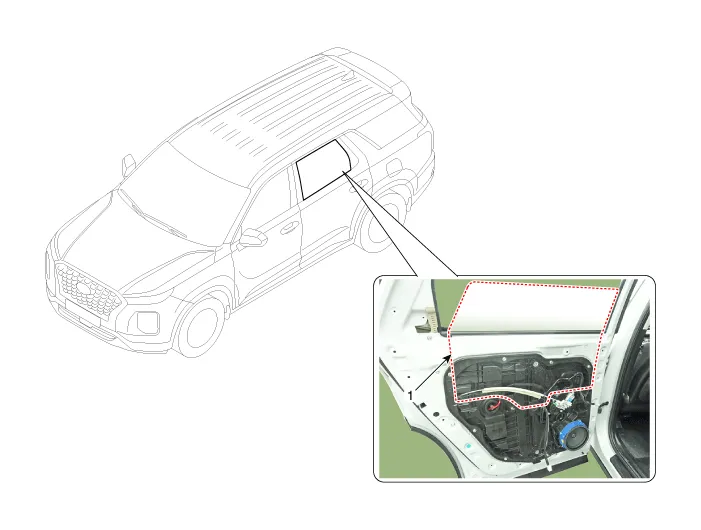

Component Location

Hyundai Palisade. Components and components location

1. Rear door window glass

Repair procedures

Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

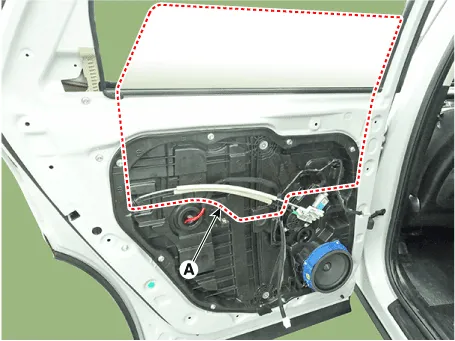

Using a remover and separate the rear door belt outside weatherstrip (A).

Hyundai Palisade. Repair procedures
3.

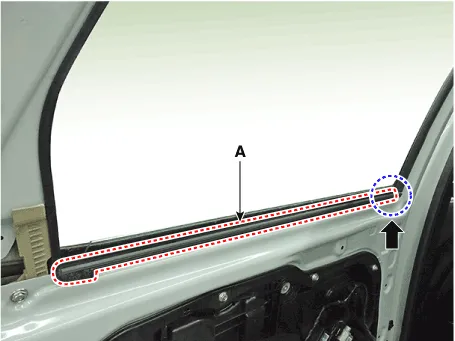

Remove the rear door belt inside weatherstrip (A).

Hyundai Palisade. Repair procedures
4.

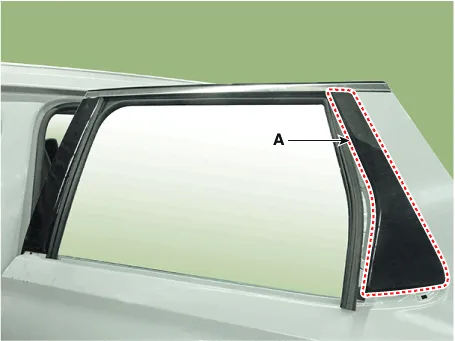

Using a remover and remove the rear door delta molding (A).

Hyundai Palisade. Repair procedures
5.

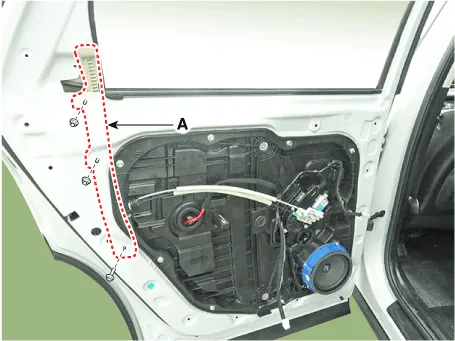

Unscrew the rear door channel mounting nut and bolt loosely.
Tightening torque
Nut : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Bolt : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Hyundai Palisade. Repair procedures
6.
Remove the plug hole (A).

Hyundai Palisade. Repair procedures
7.
By operating the power window switch, pull down until the glass mounting bolt on plug hole is visible.
Hyundai Palisade. Repair procedures
•
Be careful not to damage the glass surface.
8.
Loosen the mounting bolt and then pull out the rear door window glass (A) by tilting it sideways.
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Hyundai Palisade. Repair procedures
9.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure that the glass rolls up and down smoothly.
•
Adjust glass position as needed.
•
Make sure the door locks and opens properly.
•
Replace any damaged clips (or pin-type retainers).
