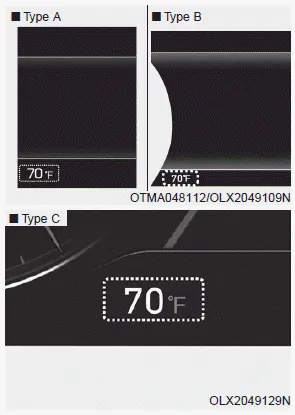

This gauge indicates the current outside air temperature by 1 degrees F (1 degrees C).
- Temperature range : -40°F ~ 140°F (-40°C ~ 60°C)
Note that the temperature indicated on the LCD display may not change as quickly as the outside temperature (there may be a slight delay before the temperature changes.)
You can change the temperature unit from °F to °C or °C to °F in the User Settings mode in the cluster:
- Go to User Settings Mode ➝ Other ➝ Temperature Unit.
For vehicles equipped with Automatic Climate Control, you can also:
- Press the AUTO button while pressing the OFF button on the climate control unit for 3 seconds
Both the temperature unit on the cluster LCD display and climate control screen will change.
