Hyundai Palisade (LX2): Parking Distance Warning (PDW) / Ultrasonic Sensor
Schematic diagrams

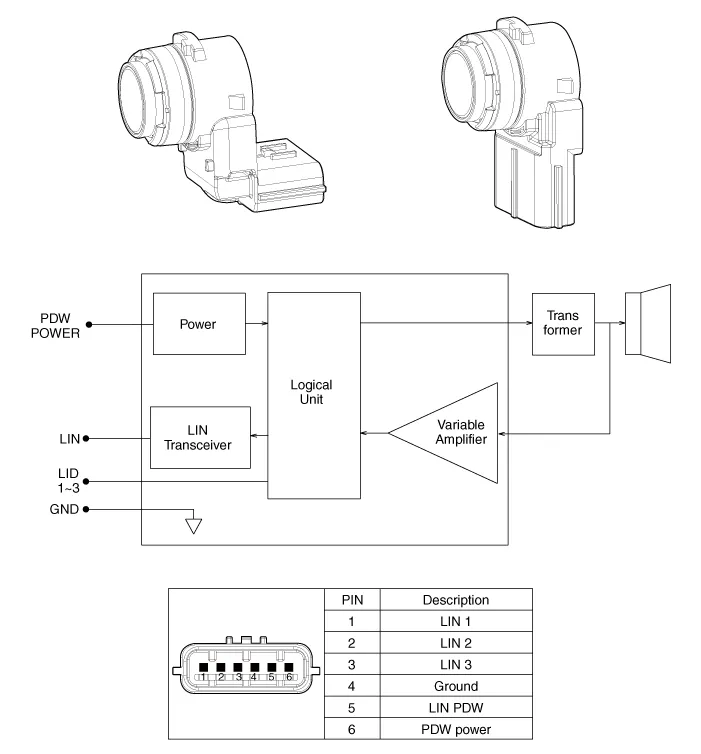

| Schematic Diagrams |
Repair procedures
| Removal |
| 1. |
Remove the bumper cover.
(Refer to Body - "Front Bumper Cover")
(Refer to Body - "Rear Bumper Cover")
|
| 2. |

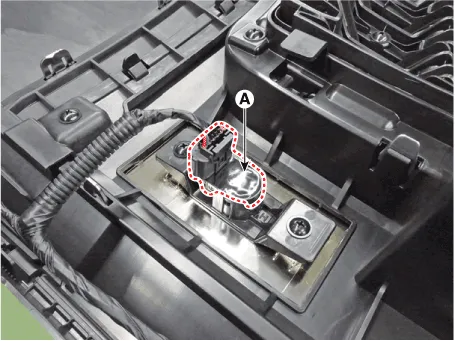

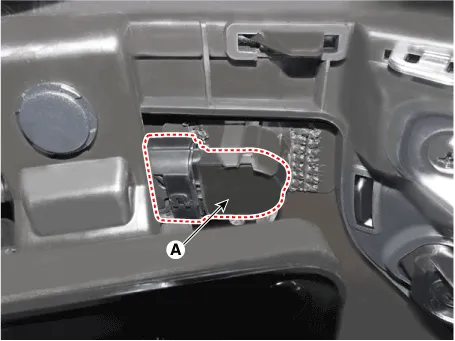

Disconnect the connector and remove the ultrasonic sensor (A).
[L - Type]
[I - Type]
|
| Installation |
| 1. |
Install the ultrasonic sensor.
|
| 2. |
Install the bumper cover.
|
Description • PDW consists of 8 sensors (front : 4 units, rear : 4 units) that are used to detect obstacles and transmit the result in three separate warning levels, the first, second and third to IBU via LIN communication.
