Specifications

Specification

Item	Specification
Rated Voltage (V)	12
Operating Voltage (V)	5 - 16

Description and operation

Description

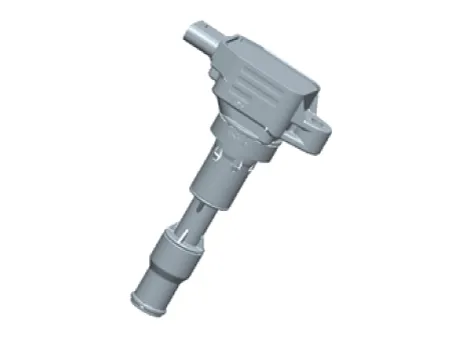

An ignition coil is an induction coil in an engine's ignition system which transforms the battery's low voltage to the high voltage needed to create an electric spark in the spark plugs to ignite the fuel. Coils have an internal resistor while others rely on a resistor wire or an external resistor to limit the current flowing into the coil from the battery 12 V supply.

Hyundai Palisade. Description and operation

Troubleshooting

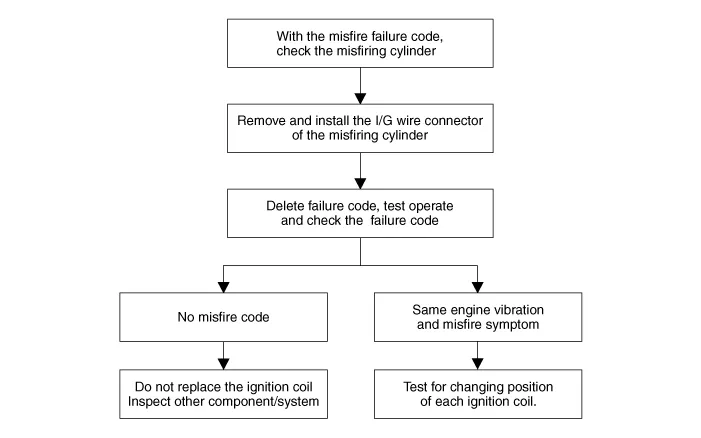

Connector assembly status test

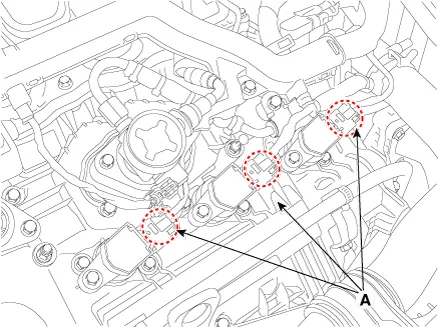

1.	Remove the connector (A) and reinstall it.

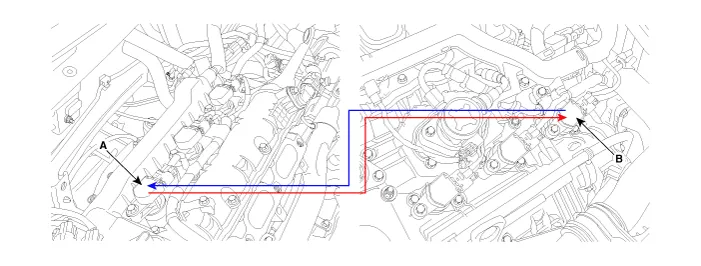

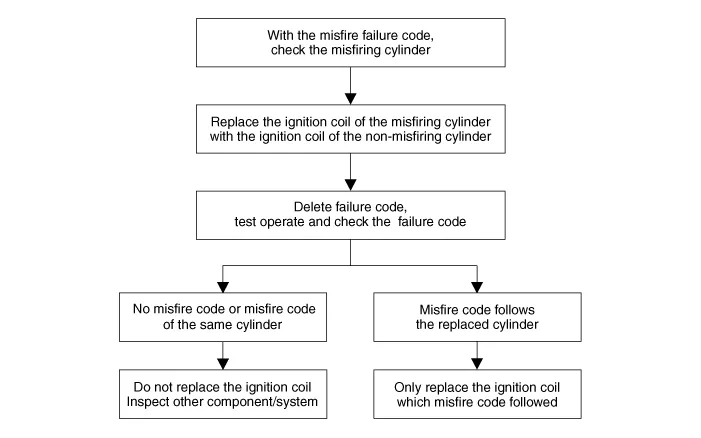

Test for changing position of each ignition coil

A : Ignition coil w/ misfire code

B : Ignition coil w/o misfire code

•	Do not move with spark plug at the same time (move the ignition coil only)

Hyundai Palisade. Troubleshooting

Repair procedures

Removal

Ignition coil (Cylinder #1) [Bank 1]

1.	Remove the surge tank. (Refer to Engine Mechanical System - "Surge Tank")

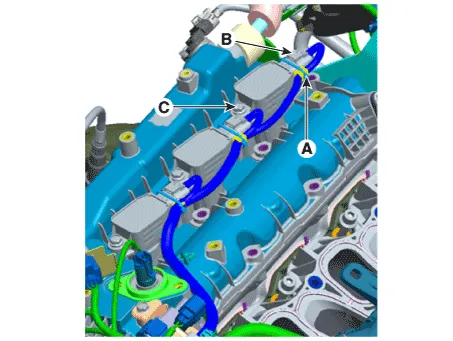

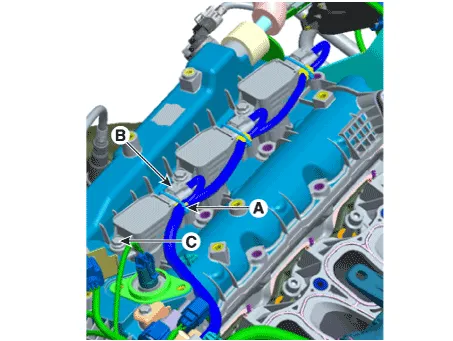

2.	Remove the strap (A).

3.	Disconnect the Ignition coil connector (B).

4.	Remove the ignition coil after loosening the mounting bolt (C).

Ignition coil (Cylinder #2) [Bank 2]

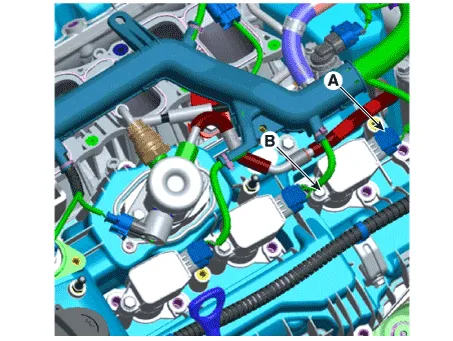

1.	Turn the ignition switch off and disconnect the battery negative (-) terminal.

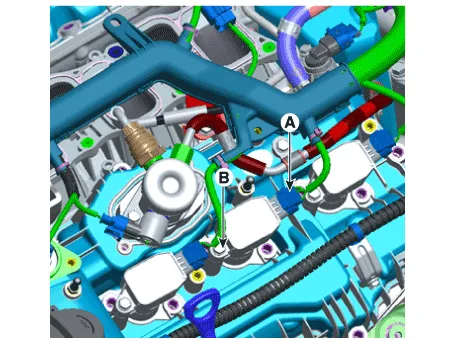

2.	Disconnect the Ignition coil connector (A).

3.	Remove the ignition coil after loosening the mounting bolt (B).

Ignition coil (Cylinder #3) [Bank 1]

1.	Remove the surge tank. (Refer to Engine Mechanical System - "Surge Tank")

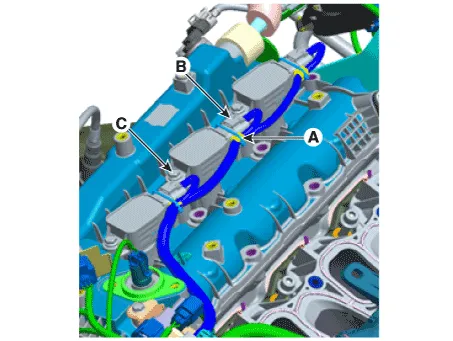

2.	Remove the strap (A).

3.	Disconnect the Ignition coil connector (B).

4.	Remove the ignition coil after loosening the mounting bolt (C).

Ignition coil (Cylinder #4) [Bank 2]

1.	Turn the ignition switch off and disconnect the battery negative (-) terminal.

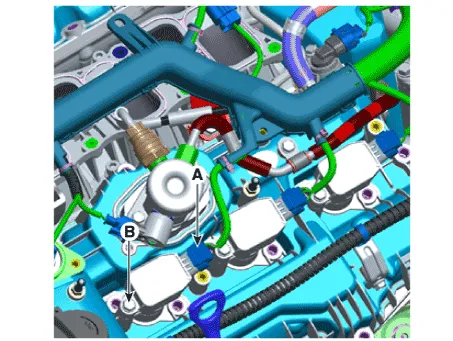

2.	Disconnect the Ignition coil connector (A).

3.	Remove the ignition coil after loosening the mounting bolt (B).

Ignition coil (Cylinder #5) [Bank 1]

1.	Remove the surge tank. (Refer to Engine Mechanical System - "Surge Tank")

2.	Remove the strap (A).

3.	Disconnect the Ignition coil connector (B).

4.	Remove the ignition coil after loosening the mounting bolt (C).

Ignition coil (Cylinder #6) [Bank 2]

1.	Turn the ignition switch off and disconnect the battery negative (-) terminal.

2.	Disconnect the Ignition coil connector (A).

Remove the ignition coil after loosening the mounting bolt (B).

Hyundai Palisade. Repair procedures

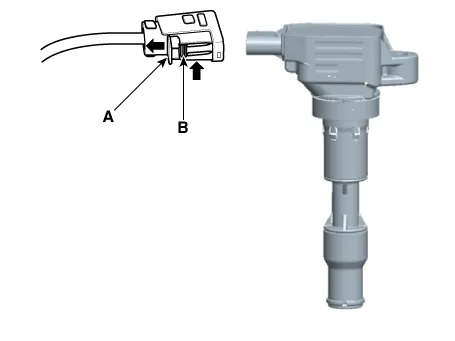

•	When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Installation

Install in the reverse order of removal.

Ignition coil mounting bolt :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)
