Hyundai Palisade (LX2): Ignition System / Spark Plug

Specifications

Specification
Item
Specification
Type
SILZKR7E11
Gap
1.0 - 1.1 mm
(0.0394 - 0.0433 in.)
Insulation resistance (MΩ)
10 or more

Description and operation

Description
A spark plug is a device for delivering electric current from an ignition system to the combustion chamber of a spark-ignition engine to ignite the compressed fuel/air mixture therein by means of an electric spark, while containing combustion pressure within the engine. A spark plug has a metal threaded shell, electrically isolated from a central electrode by a porcelain insulator.

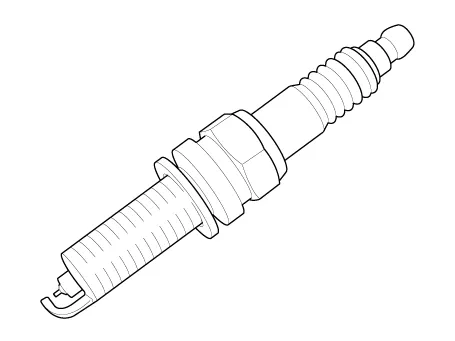

Hyundai Palisade. Description and operation

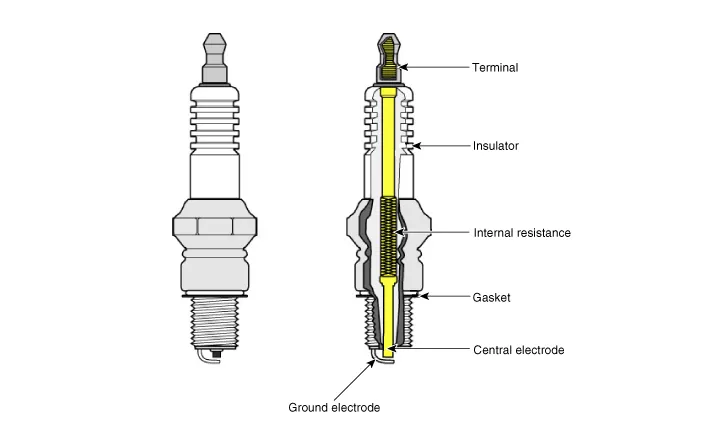

Hyundai Palisade. Description and operation

    Specifications Specification Item Specification Rated Voltage (V) 12 Operating Voltage (V) 5 - 16 Description and operation Description An ignition coil is an induction coil in an engine's ignition system which transforms the battery's low voltage to the high voltage needed to create an electric spark in the spark plugs to ignite the fuel.
