Hyundai Palisade (LX2): Front Seat Belt / Front Seat Belt Buckle

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle

Components and components location

Component Location

Hyundai Palisade. Components and components location

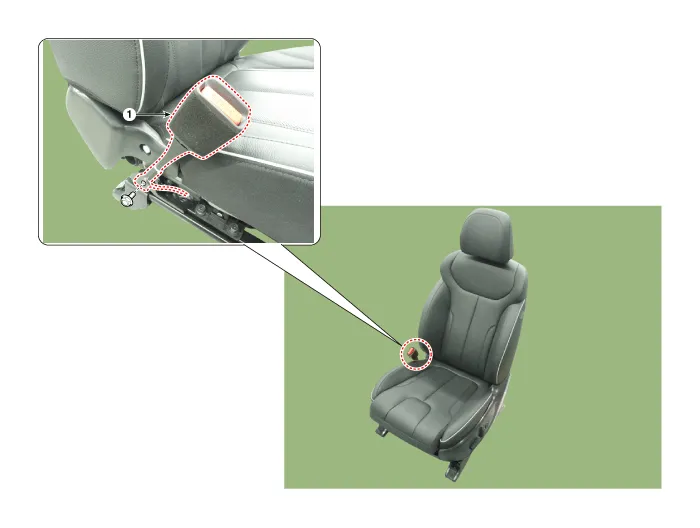

1. Front seat belt buckle

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

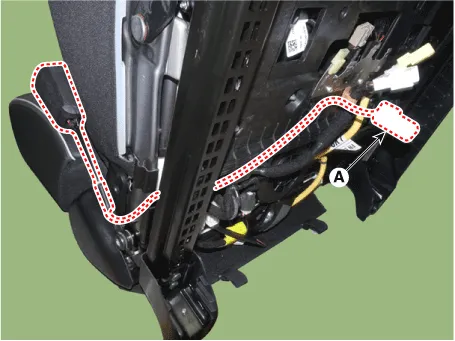

Separate the front seat belt buckle wiring (A).

Hyundai Palisade. Repair procedures
3.

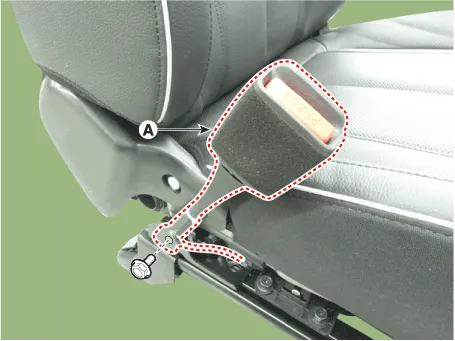

Loosen the mounting bolt and remove the front seat belt buckle (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

Hyundai Palisade. Repair procedures
4.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).
