Components and components location

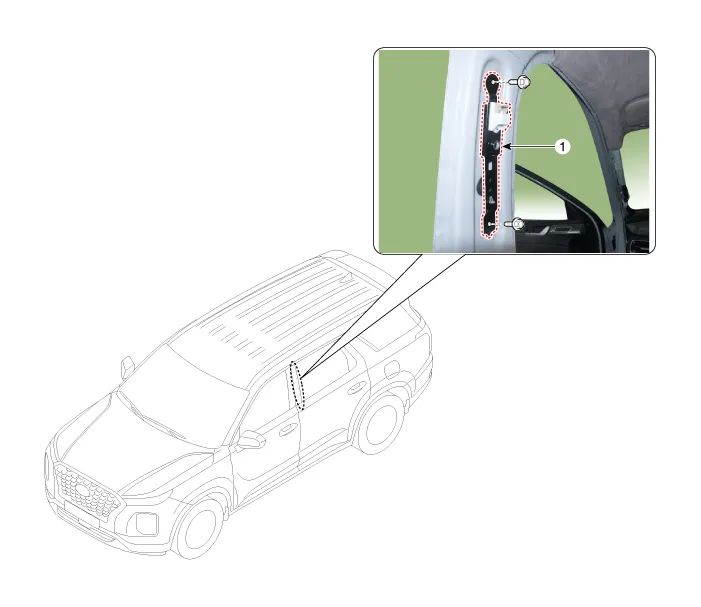

Component Location

Hyundai Palisade. Components and components location

1. Height adjust

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

1.	Remove the front seat belt upper anchor. (Refer to Front Seat Belt - "Front Seat Belt Pretensioner")

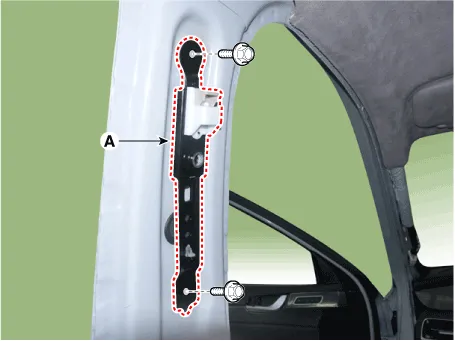

Loosen the mounting bolts and remove the height adjust (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

Hyundai Palisade. Repair procedures

3.	To install, reverse removal procedure.
