Repair procedures

Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.
Lift the vehicle.
3.
Remove the rear-LH wheel, tire, and the inner wheel house.
4.

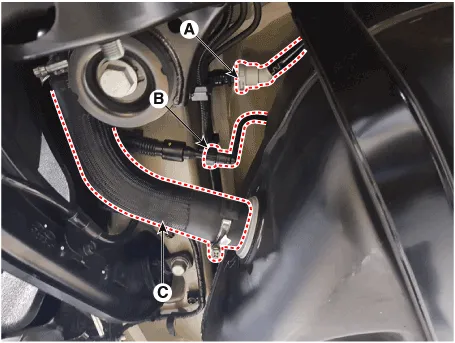

Disconnect the fuel filler hose (B) and leveling hose quick connector (A).
5.
Disconnect the ventilation hose quick connector (B).

Hyundai Palisade. Repair procedures
6.

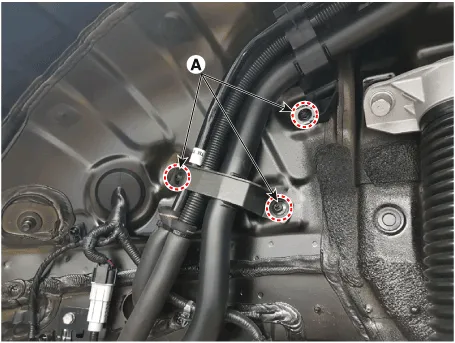

Remove the filler-neck assembly from the vehicle after removing the bracket mounting nuts (A).

Hyundai Palisade. Repair procedures

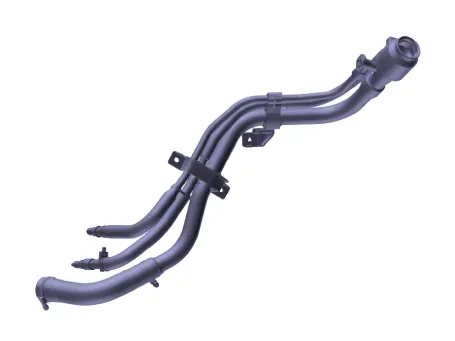

Hyundai Palisade. Repair procedures
Installation
1.
Install in the reverse order of removal.

    Repair procedures Removal    • Be careful not to damage the fuel line during repair.

    Repair procedures Removal    • When removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, injury may be caused by leakage of high pressure fuel.
