Hyundai Palisade (LX2): Interior Trim / Door Scuff Trim

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim

Components and components location

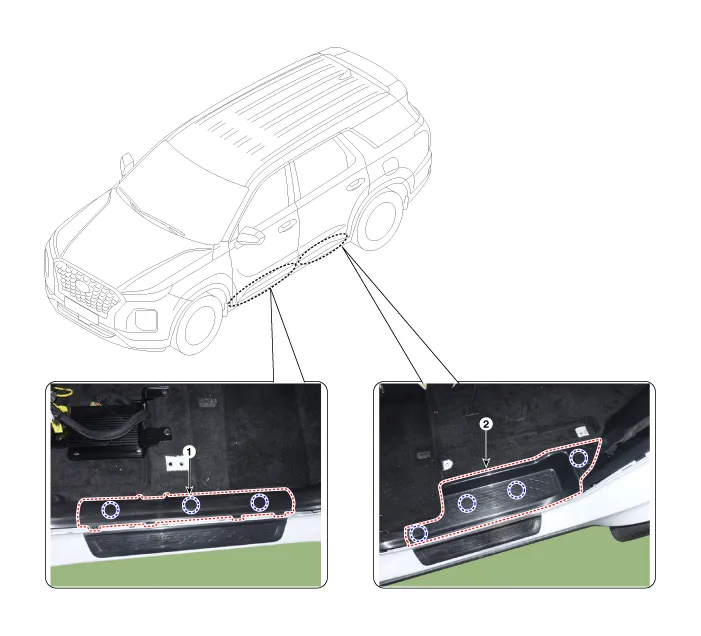

Component Location

Hyundai Palisade. Components and components location

1. Front door scuff trim
 2. Rear door scuff trim

Repair procedures

Replacement
[Front door scuff trim]
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front door body side weatherstrip.
2.

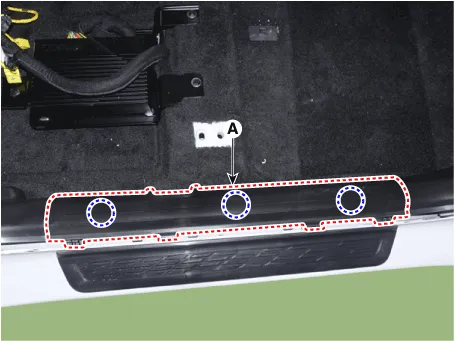

Using a flat-tip screwdriver or remover and remove the front door scuff trim (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
[Rear door scuff trim]
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear door body side weatherstrip.
2.

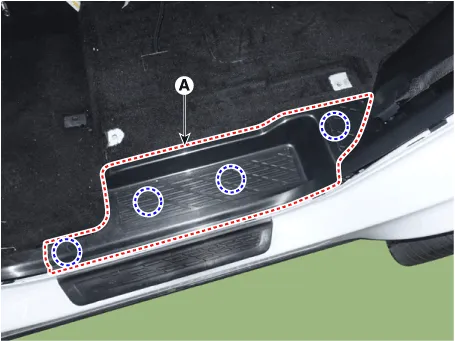

Using a flat-tip screwdriver or remover and remove the rear door scuff trim (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
