Hyundai Palisade (LX2): Interior Trim / Components and components location

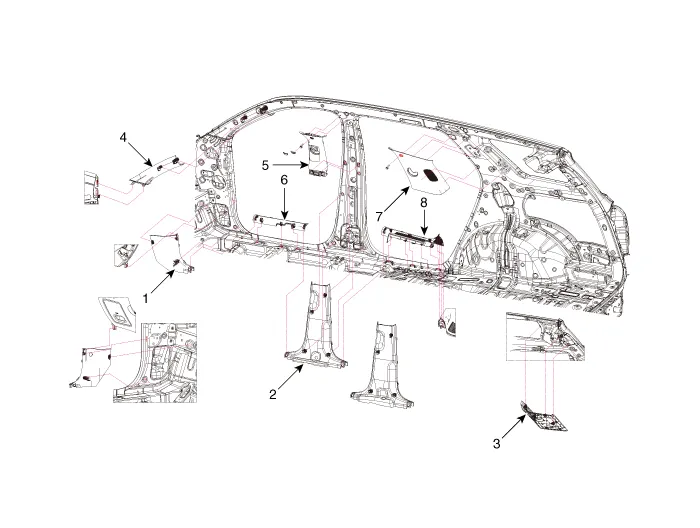

| Components |
| 1. Cowl side trim 2. Center pillar lower trim 3. Tailgate pillar trim 4. Front pillar trim |
5. Center pillar upper trim 6. Front door scuff trim 7. Rear pillar trim 8. Rear door scuff trim |
Components and components location Component Location 1. Front door scuff trim 2. Rear door scuff trim Repair procedures Replacement [Front door scuff trim] • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
