Hyundai Palisade (LX2): Interior Trim / Door Step Trim
Components and components location

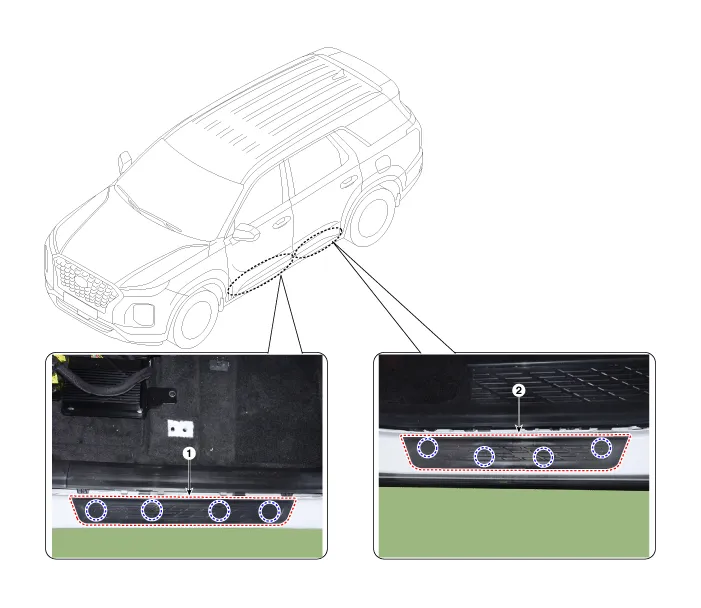

| Component Location |
| 1. Front Door Step Trim |
2. Rear Door Step Trim |
Components and components location Component Location 1. Front door scuff trim 2. Rear door scuff trim Repair procedures Replacement [Front door scuff trim] • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Components and components location Component Location 1. Cowl side trim Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
