Hyundai Palisade (LX2): Crash Pad / Crash Pad Under Cover

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Under Cover

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

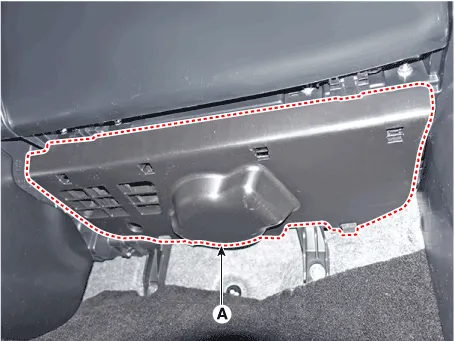

Using a flat-tip screwdriver and remove the crash pad under cover (A).

Hyundai Palisade. Repair procedures
2.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).

    Components and components location Component Location 1. Crash pad center garnish 3. Crash pad garnish [LH] 2.

    Components and components location Component Location 1. Crash pad lower panel Repair procedures Replacement    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
