Hyundai Palisade (LX2): Crash Pad / Crash Pad Lower Panel

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Lower Panel

Components and components location

Component Location

Hyundai Palisade. Components and components location

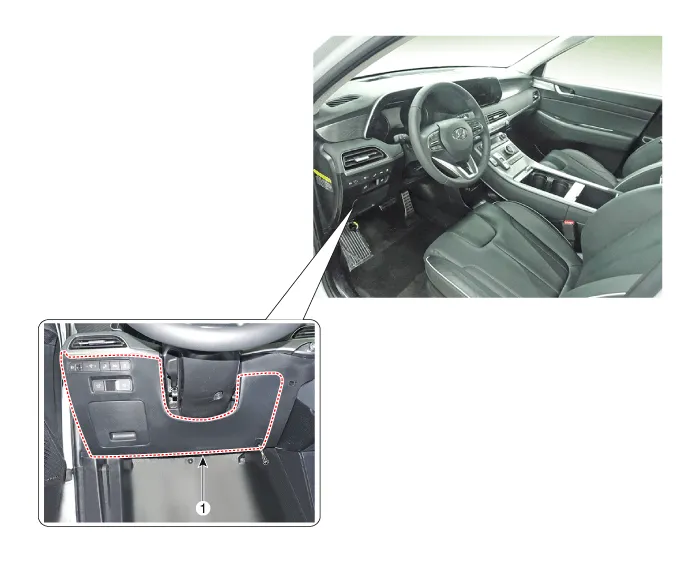

1. Crash pad lower panel

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

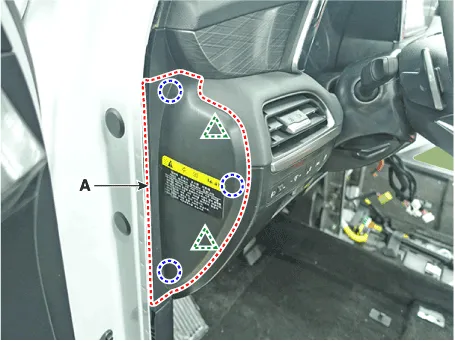

1.	Using a flat-tip screwdriver and remove the crash pad side cover [LH] (A).

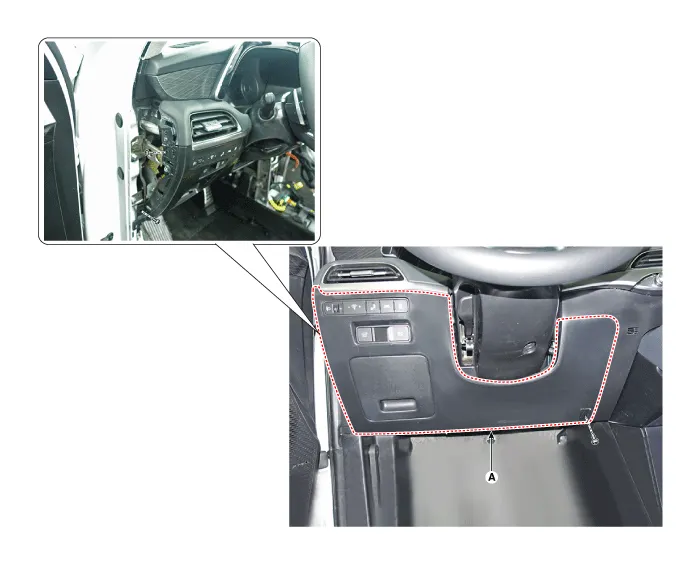

2.	Loosen the mounting screws and remove the crash pad lower panel (A).

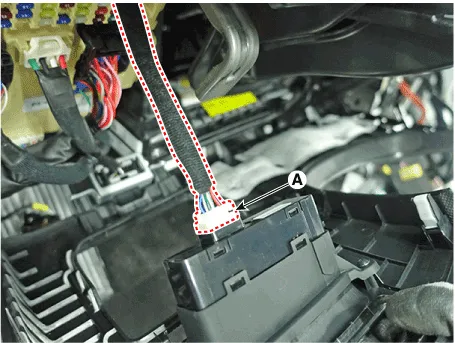

3.	Press the lock pin and separate the EPB connector (A).

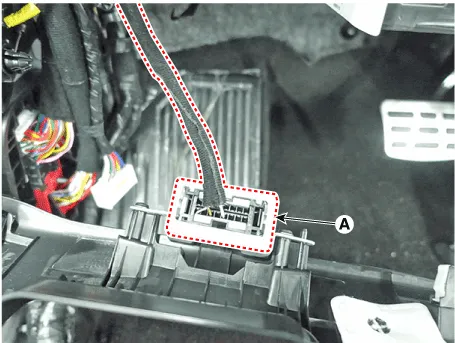

4.	Press the lock pin and separate the diagnosis connector (A).

To install, reverse removal procedure.

•	Replace any damaged clips (or pin-type retainers).

•	Make sure the connector are connected in properly.
