Hyundai Palisade (LX2): Hydraulic System / Components and components location

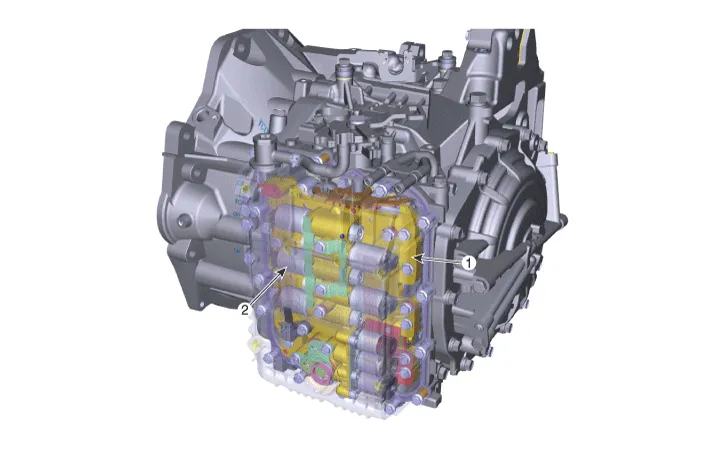

| Components Location |
| 1. Valve body assembly |
2. Solenoid valve |
Description • The hydraulic system consists of a valve body, an oil filter and an oil pump. • The oil pump is powered by the engine.
Repair procedures Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2.
