Hyundai Palisade (LX2): AVN System / AVN Keyboard Assembly

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / AVN System / AVN Keyboard Assembly

Components and components location

Components

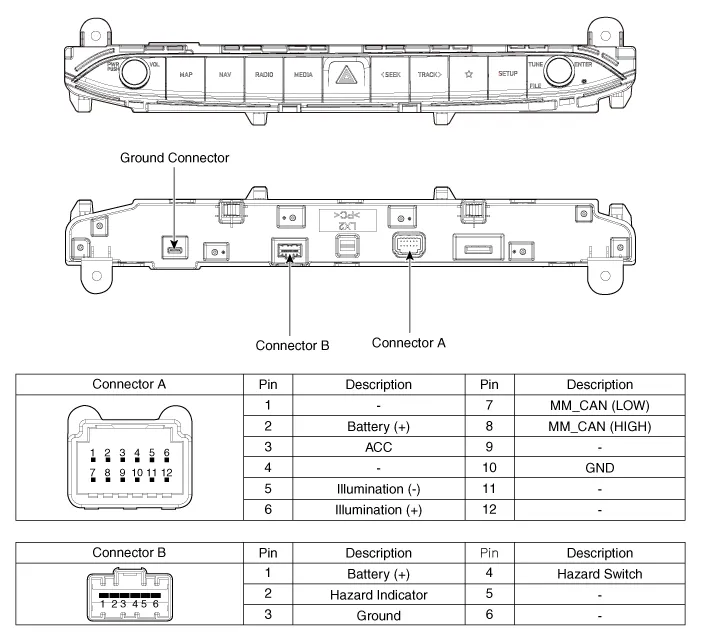

Hyundai Palisade. Components and components location

Repair procedures

Removal
1.
Disconnct the negative (-) battery terminal.
2.
Remove the carsh pad garnish.
(Refer to Body - "Crash Pad Garnish")
3.
Remove the AVN keyboard unit (A) after loosening mounting screws.

Hyundai Palisade. Repair procedures
4.
Dsiconnect the connector (A) and then remove the AVN keyboard unit.

Hyundai Palisade. Repair procedures
Installation
1.
Install the audio keyboard unit.
2.
Install the carsh pad garnish.
3.
Connect the negative (-) battery terminal.
Hyundai Palisade. Repair procedures
•
Make sure the connector are connected in properly.
•
Check the audio system.

    Components and components location Components

    Schematic diagrams Circuit Diagram Description and operation Description The AUX, iPod and USB JACK on the center console is for customers who like to listen to external portable music players like the MP3, iPod, earphone, USB memory stick, CD player and etc.
