Hyundai Palisade (LX2): Rear Heater / Rear Temperature Control Actuator

Hyundai Palisade (LX2) 2020-2026 Service Manual / Heating,Ventilation And Air Conditioning / Rear Heater / Rear Temperature Control Actuator

Repair procedures

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the luggage side trim
(Refer to Body - "Luggage Side Trim ")
3.

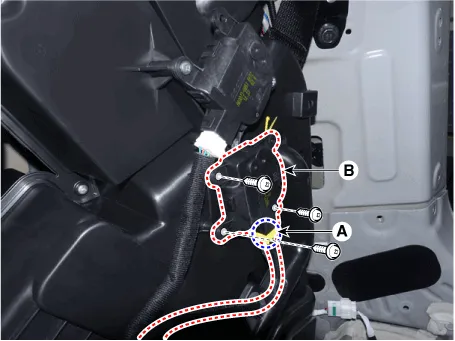

Separate the rear temperature actuator connector (A), loosen the mounting screws and remove the rear temperature actuator (B).

Hyundai Palisade. Repair procedures
4.
Install in the reverse order of removal.
Hyundai Palisade. Repair procedures
•
Make sure the connector is connected in properly.
