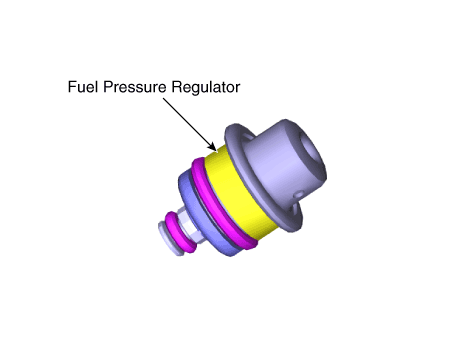

Hyundai Palisade: Fuel Delivery System / Fuel Pressure Regulator

Hyundai Palisade (LX2) 2020-2023 Service Manual / Engine Control/Fuel System / Fuel Delivery System / Fuel Pressure Regulator

Repair procedures
Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.

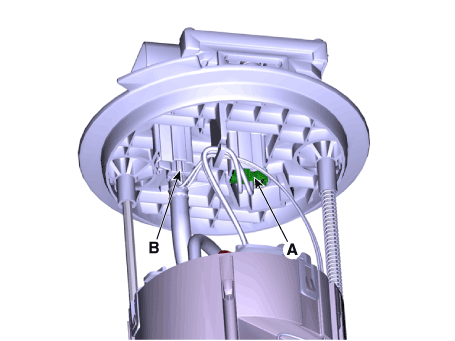

Disconnect the electric pump wiring connector (A), and the fuel sender connector (B).

Hyundai Palisade. Repair procedures

3.

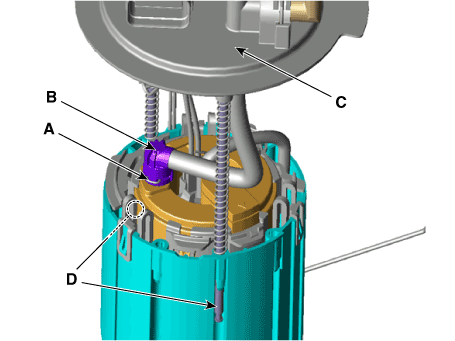

Remove the fixing clip (A), and then disconnect the feed tube (B).
4.
Remove the head assembly (C) after releasing the cushion fixing clip (D).

Hyundai Palisade. Repair procedures

5.

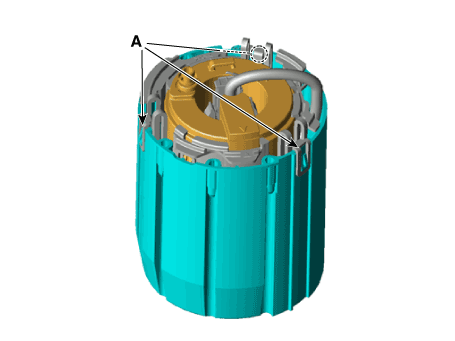

Remove the reservoir-cup after releasing the fixing hook (A).

Hyundai Palisade. Repair procedures

6.

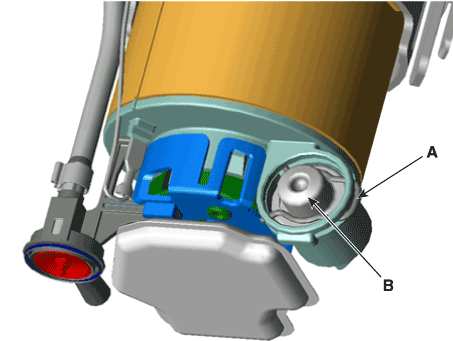

Remove the fuel pressure regulator fixing clip (A).
7.
Remove the fuel pressure regulator (B) from the fuel filter.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Installation
1.
Install in the reverse order of removal.
