| Removal |
| 1. |
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
|
| 2. |
Disconnect the fuel sender connector (A).
|
| 3. |

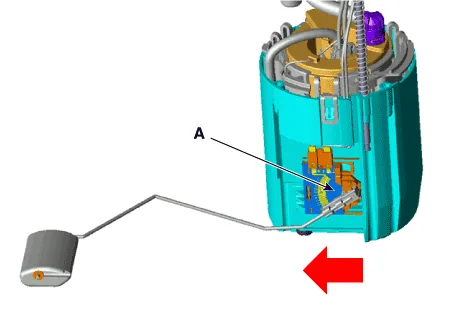

Remove the fuel sender (A) in the direction of an arrow.
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
