Description and operation

Description
The evaporator temperature sensor will detect the evaporator core temperature and interrupt compressor relay power in order to prevent evaporator from freezing by excessive cooling.

Hyundai Palisade. Description and operation

Repair procedures

Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the evaporator temperature sensor connector.
3.
Measure resistance between terminal "+" and "-" of the evaporator temperature sensor.

Hyundai Palisade. Repair procedures

Specification
Evaporator core temperature
[°C (°F)]
Resistance [KΩ]
Voltage [V]
-10 (14)
 17.93
 3.21
0 (32)
 11.36
 2.66
10 (50)
 7.4
 2.13
20 (68)
 4.94
 1.66
30 (86)
 3.37
 1.26
40 (104)
 2.35
 0.95

4.
Connect the evaporator temperature sensor connector.
5.
Run the engine and turn the A/C switch ON, then measure the voltage between the terminals of the harness connector.
Replacement
1.
Disconnect the negative (-) battery terminal.
2.

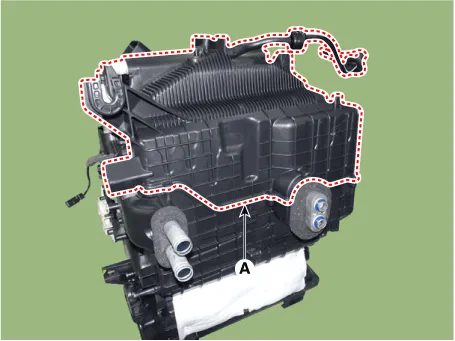

Loosen the mounting screws and remove the evaporator core cover (A).

Hyundai Palisade. Repair procedures
3.

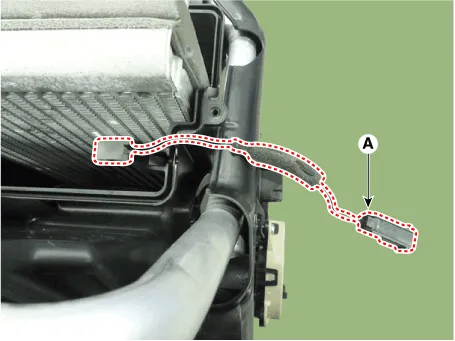

Separate the evaporator temperature sensor (A) from the evaporator core.

Hyundai Palisade. Repair procedures
4.
Install in the reverse order of removal.

    Description and operation Description The A/C Pressure Transducer (APT) converts the pressure value of high pressure line into voltage value after measuring it.

    Description and operation Description The In-car air temperature sensor is built in the heater & A/C control unit. The sensor consists of a thermistor that measures the inside temperature.
