Hyundai Palisade: Convenient Features of Your Vehicle / Wipers and washers

Hyundai Palisade (LX2) 2020-2023 Owner's Manual / Convenient Features of Your Vehicle / Wipers and washers

Hyundai Palisade. Wipers and washers

■ Front windshield wiper/washer

Hyundai Palisade. Wipers and washers

■ Rear window wiper/washer

A : Wiper speed control

· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe
AUTO* – Auto control wipe
· LO – Low wiper speed
· HI – High wiper speed

B : Intermittent control wipe time adjustment

C :Wash with brief wipes (pull lever towards you)

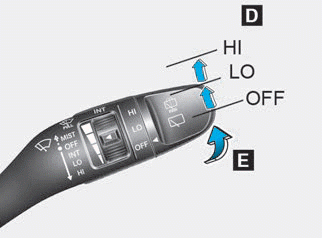

D : Rear wiper/washer control

· HI – High wiper speed
· LO – Low wiper speed
· OFF – Off

E : Wash with brief wipes (rear) (push lever away from you)

Welcome System

Welcome light Puddle lamp (if equipped) and door handle lamp (if equipped) When all the doors (and liftgate) are closed and locked, the puddle lamp and door handle lamp will come on for about 15 seconds if any of the below is performed...

Front Windshield Wipers

Operates as follows when the ignition switch is in the ON position. MIST : For a single wiping cycle, push the lever upward and release. The wipers will operate continuously if the lever is held in this position...
