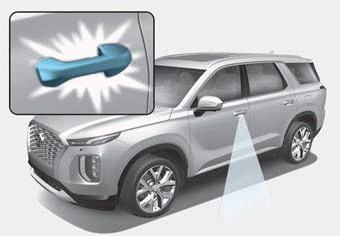

Welcome light

Puddle lamp (if equipped) and door
handle lamp (if equipped)
When all the doors (and liftgate) are
closed and locked, the puddle lamp
and door handle lamp will come on
for about 15 seconds if any of the
below is performed.
- When the door unlock button is
pressed on the remote key or
smart key.
- When the button of the outside
door handle is pressed with the
smart key in possession.
- If 'Convenience → Welcome Light
→ On driver approach' is selected
in the User Settings mode in the
cluster LCD display, the lamps will
turn on when the vehicle is
approached with the smart key in
possession.
Headlamp and parking lamp
When the headlamp (lamp switch in
the headlamp or AUTO position) is on
and all doors (and liftgate) are locked
and closed, the parking lamp and
headlamp will come on for 15 seconds
when the door unlock button is
pressed on the remote key or smart
key.
At this time, if you press the door lock
or unlock button, the parking lamp and
headlamp will turn off immediately.
Interior lamp
When the interior lamp switch is in
the DOOR position and all doors (and
liftgate) are closed and locked, the
room lamp will come on for 30 seconds
if any of the below is performed.
- When the door unlock button is
pressed on the remote key or
smart key.
- When the button of the outside
door handle is pressed with the
smart key in possession.
At this time, if you press the door lock
or unlock button on the smart key the
room lamp will turn off immediately.
Welcome light
When all doors (and liftgate) are
closed and locked, the puddle lamp
will come on for 15 seconds if the
door is unlocked by the remote key
or smart key or outside door handle
button...
Other information:
[A] : Front Sensor, [B] : Rear Sensor
The Parking Distance Warning
(Reverse/Forward) system assists
the driver during movement of the
vehicle by chiming if any object is
sensed within the distance of 39
inches (100 cm) in front and 47 inches
(120 cm) behind the vehicle...
Components and components location
Component
Connector Pin Function
Connector
PIN No
Pin Function
Connector
PIN No
Pin Function
A
1
Battery
A
17
IGN2
2
ISG B+
18
IGN1
3
ILL+ (TAIL)
19
Blower Motor (+)
4
Sensor Ground REF (+5V)
20
-
5
Mode Control Actuator Feedback
21
Mosfet (DRAIN F/B)
6
Temperature Actuator Feedback
22
Mosfet (GATE)
7
Mode Control Actuator (Vent)
23
Heater Switch _ LH
8
Mode Control Actuator (Defrost)
24
Indicator (HIGH) _ LH
9
Temperature Control Actuator (Cool)
25
Indicator (MID) _ LH
10
Temperature Control Actuator (Warm)
26
Indicator (LOW) _ LH
11
Detent out (-)
27
Heater Switch _ RH
12
K - Line
28
Indicator (HIGH) _ RH
13
LIN Left
29
Indicator (MID) _ RH
14
Lin Right
30
Indicator (LOW) _ RH
15
-
31
Sensor Ground
16
ILL - (RHEO)
32
Ground
Repair procedures
Replacement
•
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components...
Categories

If the remote key is not working properly,
try replacing the battery with a
new one.
Battery Type: CR2032
To replace the battery:
read more
