Hyundai Palisade: Smart Key System / Smart Key Unit

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body Electrical System / Smart Key System / Smart Key Unit

Components and components location

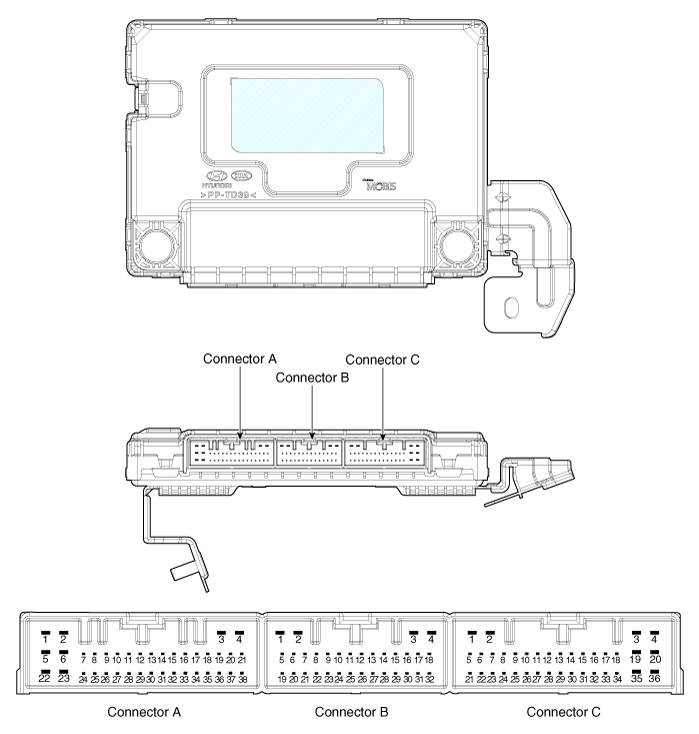

Components (1)

Hyundai Palisade. Components and components location

Connector Pin Information
No
Connector A
Connector B
Connector C
1
-
GND_ECU
Front wiper relay (Low)_output
2
-
PDW-F power_output
ESCL (+)_output
3
GND_Power
ESCL (-)_output
Start relay_output
4
PDW-R_Power_Output
Front wiper high relay_output
IGN1 relay_output
5
-
PDW-R WIND_output
Immobilizer antenna power_output
6
Rear washer switch_input
-
Immobilizer antenna ground_output
7
LIN4 (Rear seat remind)
-
-
8
P_CAN (Low)
Rear view switch_input
Interior1 antenna (+)_output
9
P_CAN (High)
-
Driver outside handle antenna(+)_output
10
-
Wheel speed sensor_input
-
11
B_CAN (Low)
-
Passenger outside handle antenna(+)_output
12
B_CAN (High)
3rd line sheet belt indicator RH_output
-
13
SSB switch_input
Passenger seat belt indicator_output
Trunk interior antenna3(+)_output
14
Driver handle antenna switch_input
Rear center seat belt indicator_output
Immobilizer K-Line
15
P position_input (AT)
-
Bumper antenna (+)_output
-
16
Fog switch_input
LF searching_output
Interior antenna2(+)_output
17
Light switch_input
Auto light sensor signal_input
IGN2_input
18
Front wiper INT volume switch_input
Auto light sensor power_output
IGN1_input
19
Multifunction switch_input
ATM solenoid_output
IGN2 relay_output
20
Right side mirror unfolding switch_oupout
Puddle pocket lamp_output
Battery_power
21
Right side mirror heater_output
-
Brake switch_input
22
Front washer switch_input
SSB ring illumination_output
Start feedback_input
23
Front wiper low switch_Input
piezo buzzer_output
Security indicator_output
24
LIN1 (PDW)
SSB symbol illumination_output
Interior1 (-)_output
25
LIN2 (Safety ECU)
3rd line sheet belt indicator_output
Driver outside handle antenna (-)_output
26
LIN3 (Rain sensor)
Wiper power relay_output
-
27
PDW power_input
Rear seat belt indicator RH_output
Passenger outside handle antenna (-)_output
28
PDW_input
Rear seat belt indicator LH_output
ESCL COM
29
SSB switch1_input
3rd line sheet belt indicator LH_output
Trunk Interior antenna3(-)_output
30
ESCL unlock_input
Rear wiper relay_output
ESCL Enable_output
31
Passenger outside handle switch_input
Auto light sensor ground_output
Bumper antenna (-)_output
32
PDW switch_input
Wiper parking switch_input
Interior antenna2 (-)_output
33
Sun roof Status_input

ACC_input
34
Head lamp switch_input
Mirror power_input
35
Front wiper switch_input
ACC relay_output
36
Rear wiper switch_input
ECU battery (+)
37
Mirror folding RH_output

38
Mirror RH VT_output
