Hyundai Palisade: Horn / Repair procedures

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body Electrical System / Horn / Repair procedures

Removal
1.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
2.

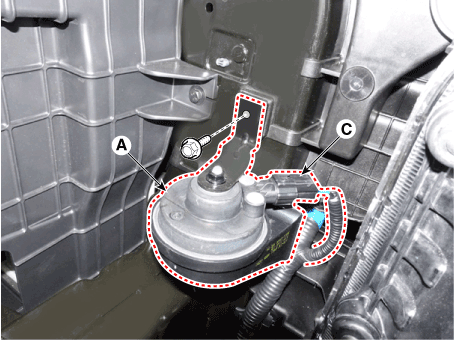

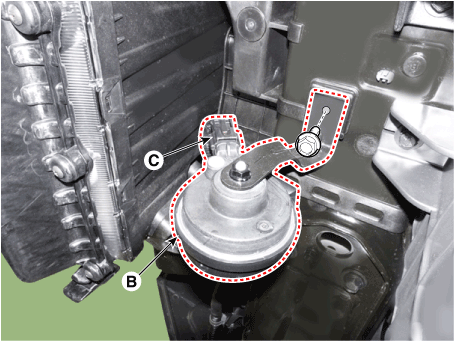

Remove the bolts and disconnect the horn connectors (C), then remove the high pitch horn (B) and low pitch horn (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Installation
1.
Install the horns after connecting the horn connectors.
2.
Install the front bumper cover.

    Components and components location

    Component Location 1. Horn switch 2. Horn relay (Engine room compartment) 3. Horn (Low pitch) 4. Horn (High pitch) 5...
