Hyundai Palisade (LX2): Body Side Molding / Rear Mud Guard

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Rear Mud Guard

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.

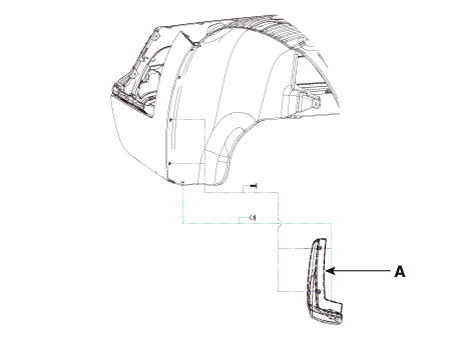

Loosen the mounting clips, screws and, remove the rear mud guard (A).

Hyundai Palisade. Repair procedures
2.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
