Hyundai Palisade (LX2): Convenient Features of Your Vehicle / Instrument cluster

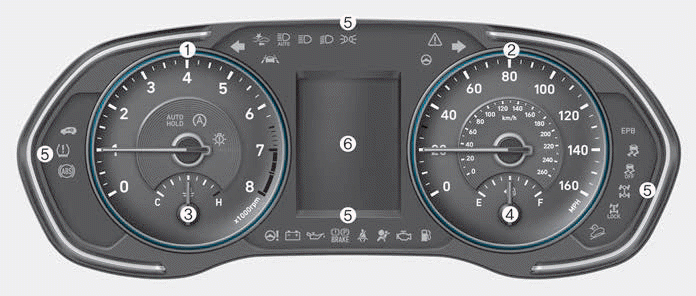

â– Type A

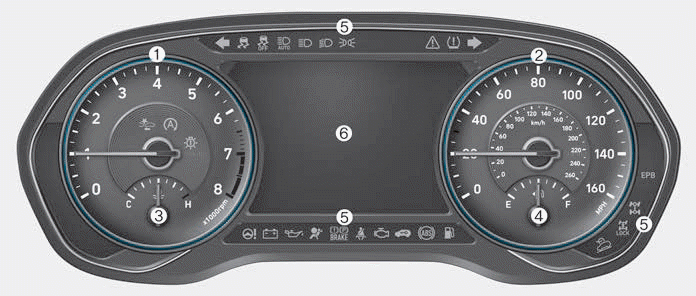

â– Type B
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display (including Trip computer)

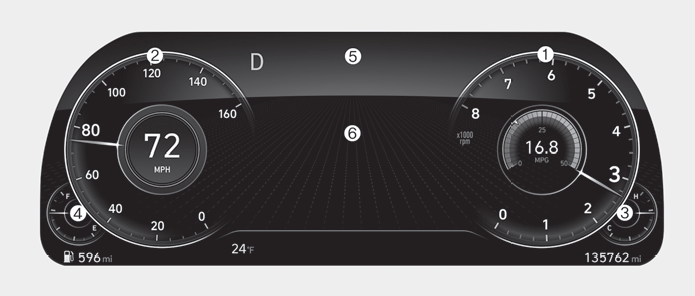

â– Type C
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display (including Trip computer)
- Instrument Cluster Control
- Gauges and Meters
- Transmission Shift Indicator
- Warning and Indicator Lights
- LCD Display Messages
Opening the fuel filler door 1. Turn the engine off. 2. Ensure the driver's door is unlocked. 3. Push the fuel filler door near the 3 o'clock position.
Adjusting instrument cluster illumination When the vehicle's position lights or headlights are on, press the illumination control button to adjust the brightness of the instrument panel illumination.
