Hyundai Palisade (LX2): Rear Door / Rear Door Belt Inside Weatherstrip

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Inside Weatherstrip

Repair procedures

Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

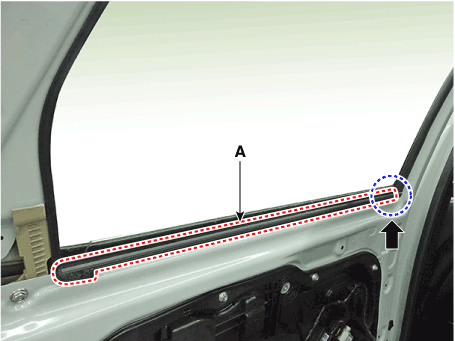

Remove the rear door belt inside weatherstrip (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.

    Repair procedures Replacement 1. Pull down the rear door window glass to the lowest level by pressing the power window glass switch.

    Repair procedures Replacement [Rear door side weatherstrip] 1. Loosen the rear door checker (B) mounting bolt.
