Hyundai Palisade (LX2): Rear Door / Rear Door Belt Outside Weatherstrip

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Outside Weatherstrip

Repair procedures

Replacement
1.
Pull down the rear door window glass to the lowest level by pressing the power window glass switch.
2.

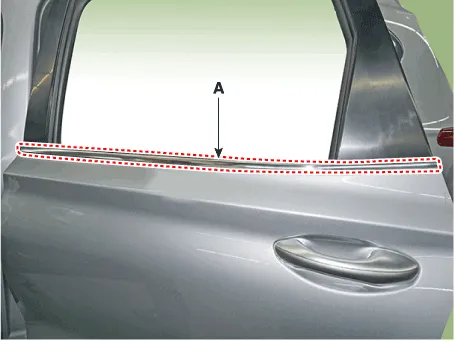

After loosening the mounting screws, remove the rear door belt outside weartherstrip (A) by pulling it upward.

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips.
